BS-H1-K-76 FT 1186276 OBO BETTERMANN Clamp on profile 2056 BS-H1-K-76 FT Polyamide, PA Steel, St Hot-dipped ..
BS-H1-K-76 FT
1186276
OBO BETTERMANN
25

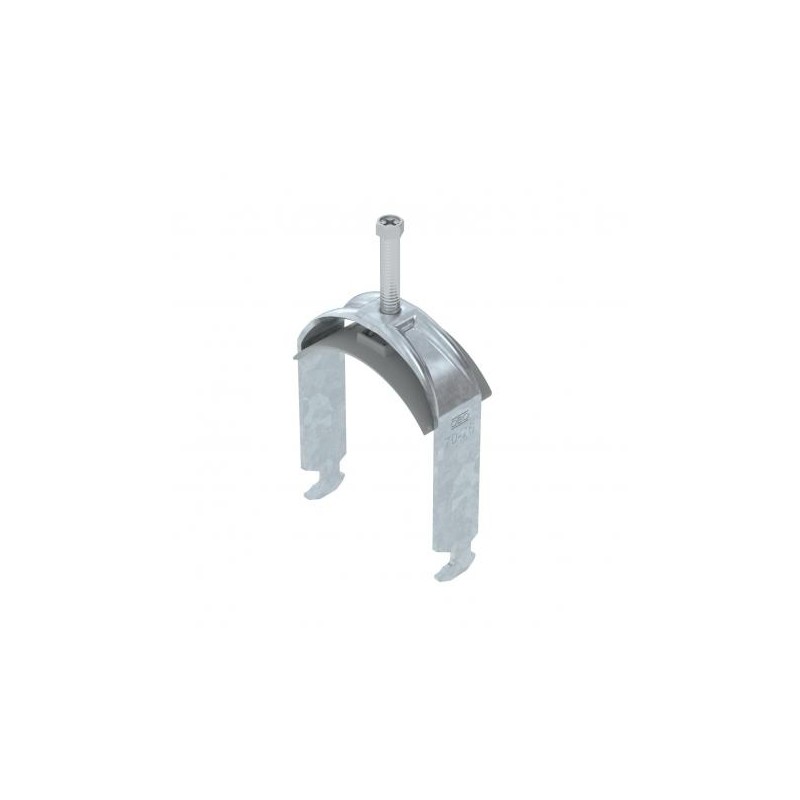

Clamp on profile 2056 BS-H1-K-76 FT Polyamide, PA Steel, St Hot-dipped galvanized, DIN EN ISO 1461
Clamp on single H-base profile, plastic half-rod, FT 2.5 mm M8 70-76 mm
Clamp on simple H base profile, plastic half-cane, FT. Clamp on profile with hammer head base, polypropylene plastic half-cane. For vertical and horizontal mounting of 1 single cable in type C profile. For slot width of 16 - 17 mm. With 1-step screw in the half-round, SW10 universal hexagonal screw head, with groove and cross groove. Suitable for mounting in indoor and outdoor areas. The use of a counter-shaft is recommended.
Installation material for cables and tubes > One-piece strut clamp
VBS Connection and fastening systems - OBO BETTERMANN > VBS Clamps BSS - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲
| Feature Name | Feature Value |
|---|---|
| Chucking range (EF002391) | 70 mm |
| For pipe size metric (M..) (EF004713) | 76 |
| Max. number of cables (EF001052) | 1 |
| Material clamp (EF006530) | Steel |
| Surface protection clamp (EF005142) | Hot dip galvanized |
| Material shell (EF014679) | Plastic |
| Material quality shell (EF014685) | Polypropylene (PP) |
| Surface protection shell (EF014680) | Hot dip galvanized |
| Material screw (EF006529) | Steel |
| Surface protection screw (EF005143) | Hot dip galvanized |
| With counter shell (EF014681) | No |
| Mounting method (EF000003) | Profile rail |
| Halogen free (EF000025) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
