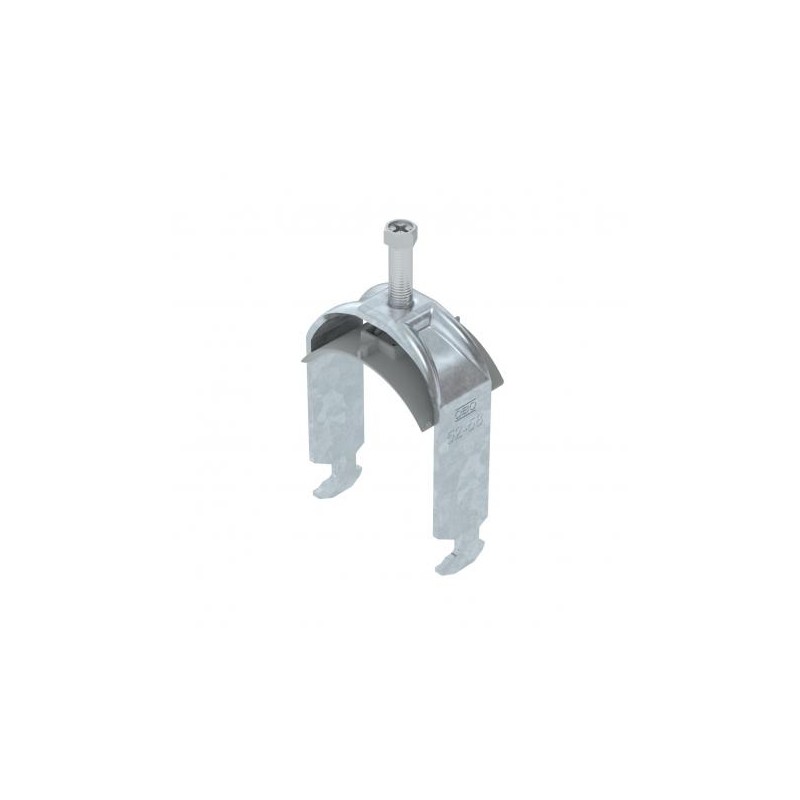

BS-H1-K-58 FT 1186256 OBO BETTERMANN Clamp on single H-base profile, plastic half-rod, FT 2.5 mm M8 52-58 mm
BS-H1-K-58 FT
1186256
OBO BETTERMANN
100
Clamp on single H-base profile, plastic half-rod, FT 2.5 mm M8 52-58 mm
Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, FT. Clamp clip with hammerhead foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.
Installation material for cables and tubes > One-piece strut clamp
VBS Connection and fastening systems - OBO BETTERMANN > VBS Clamps BSS - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Clamping range D, max. | 58 mm |
|---|---|
| Clamping range D, min. | 52 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2925 kg CO2e / 1 Piece |
| Dimension | 52-58mm |
| Dimension A | 25 mm |
| Dimension B | 64 mm |
| Dimension C | 40 mm |
| Dimension G (mm) | M8 |
| Dimension H | 96 mm |
| Dimension L | 45 mm |
| Dimension t | 2,5 mm |
| For pipe diameter, max. | 58 mm |
| For pipe diameter, min. | 52 mm |
| for rail with slot width (with interval), max. | 17 mm |
| for rail with slot width (with interval), min. | 16 mm |
| Halogen-free | yes |
| Height | 96 mm |
| Length | 25 mm |
|---|---|
| Length of external dimensions | 40 mm |
| Material | Steel |
| Material addition | Steel |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| Number of cables/pipes | 1 |
| Plate thickness | 2,5 mm |
| Slot width | 10 mm |
| Surface | Hot-dip galvanised |
| Surface addition | hot galvanised |
| Thread | M8 |
| Width | 64 mm |
| With counter-trough | no |
| With plastic trough | yes |
| Feature Name | Feature Value |
|---|---|
| Chucking range (EF002391) | 52 mm |
| For pipe size metric (M..) (EF004713) | 58 |
| Max. number of cables (EF001052) | 1 |
| Material clamp (EF006530) | Steel |
| Surface protection clamp (EF005142) | Hot dip galvanized |
| Material shell (EF014679) | Plastic |
| Material quality shell (EF014685) | Polypropylene (PP) |
| Surface protection shell (EF014680) | Hot dip galvanized |
| Material screw (EF006529) | Steel |
| Surface protection screw (EF005143) | Hot dip galvanized |
| With counter shell (EF014681) | No |
| Mounting method (EF000003) | Profile rail |
| Halogen free (EF000025) | Yes |
