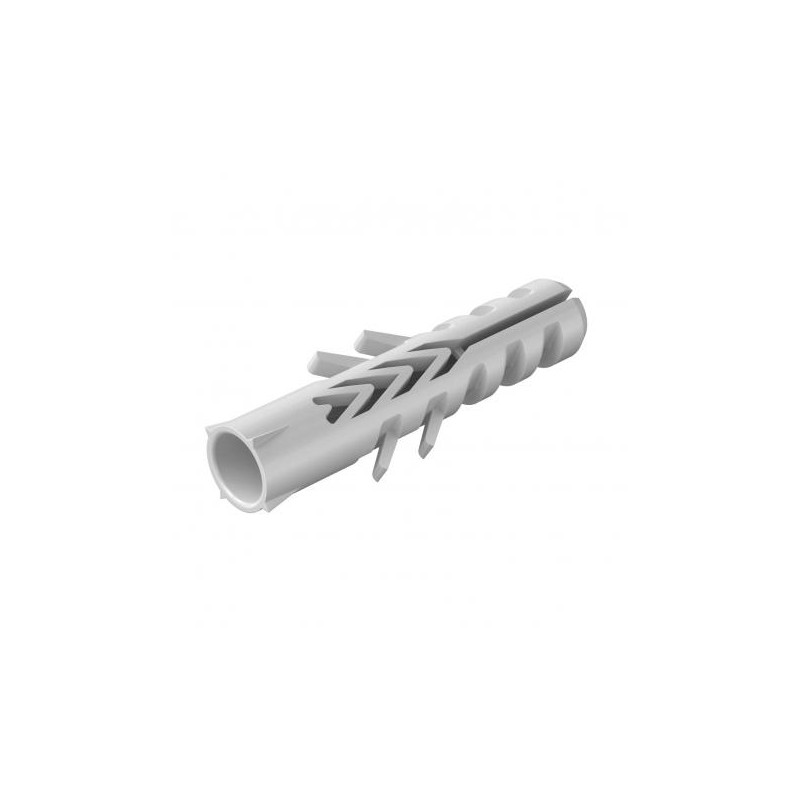

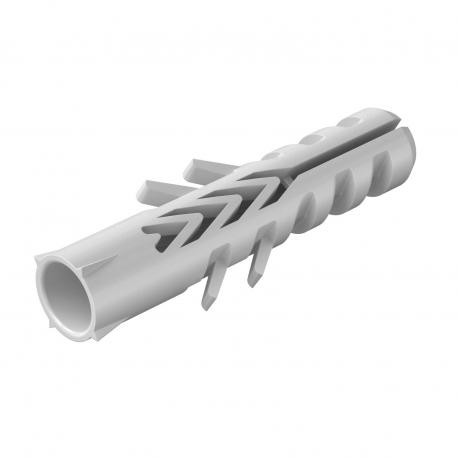

910 F 12x60 2349488 OBO BETTERMANN Bolt expansion 12x60 light grey Polyamide, PA
910 F 12x60
2349488
OBO BETTERMANN
25
Bolt expansion 12x60 light grey Polyamide, PA
Angler spreading anchor. Required minimum screw length = anchor length + component thickness + 1 x screw Ø.Withdrawal force applies to wood screws of the largest screw diameter, required safety values must be taken into account.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Colour | Light grey |
|---|---|
| Diameter | 12 mm |
| Dimension | 12x60 |
| Dimension D | 12 mm |
| Dimension L | 60 mm |
| Length | 60 mm |
| Material | Polyamide |
|---|---|
| Suitable for fastening with cable ties | no |
| Suitable for hexagonal wood screw | yes |
| Version for | Universal anchor |
| With bolts | no |
| Wood screws | 8-10 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Universal anchor plug |
| With screw (EF000385) | No |
| Suitable for coach screw (EF005797) | Yes |
| Suitable for fixing with cable ties (EF007799) | No |
| Length (EF001438) | 60 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Colour (EF000007) | Grey |
| With edge (EF006220) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
