733 44 G 1362780 OBO BETTERMANN Metal clamp ASL 733 44 G
ASL 733 44 G
1362780
OBO BETTERMANN
20

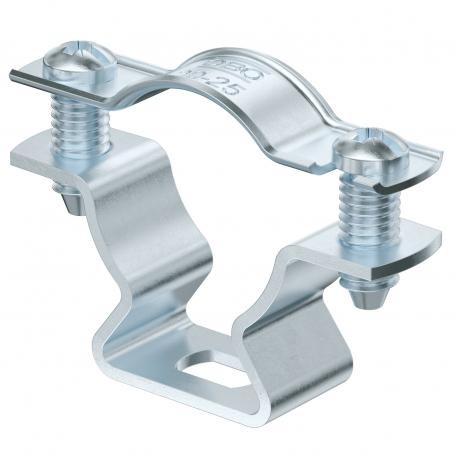

Metal clamp ASL 733 44 G
Spacer clip 733 G. Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
VBS Connection and fastening systems - OBO BETTERMANN > VBS Pizza metal fixation - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Clamping range D, max. | 44 mm |
|---|---|
| Clamping range D, min. | 36 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1123 kg CO2e / 1 Piece |
| Dimension | 36-44mm |
| Dimension A | 73 mm |
| Dimension B | 59 mm |
| Dimension b | 16 mm |
| Dimension D | 44 mm |
| Dimension d max. | 44 mm |
| Dimension d min. | 36 mm |
| Dimension L | 10 mm |
| Dimension s | 24 mm |
| Dimension t1 (mm) | 1,5 |
| Dimension t2 (mm) | 1,5 |
| Dimension x | 12 mm |
|---|---|
| Distance to the wall | yes |
| Fastening type | Screw hole |
| For diameter | 36 - 44 |
| Halogen-free | yes |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 1,5 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Surface | Electrogalvanized |
| UV-resistant | yes |
| Version for | Closed |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
