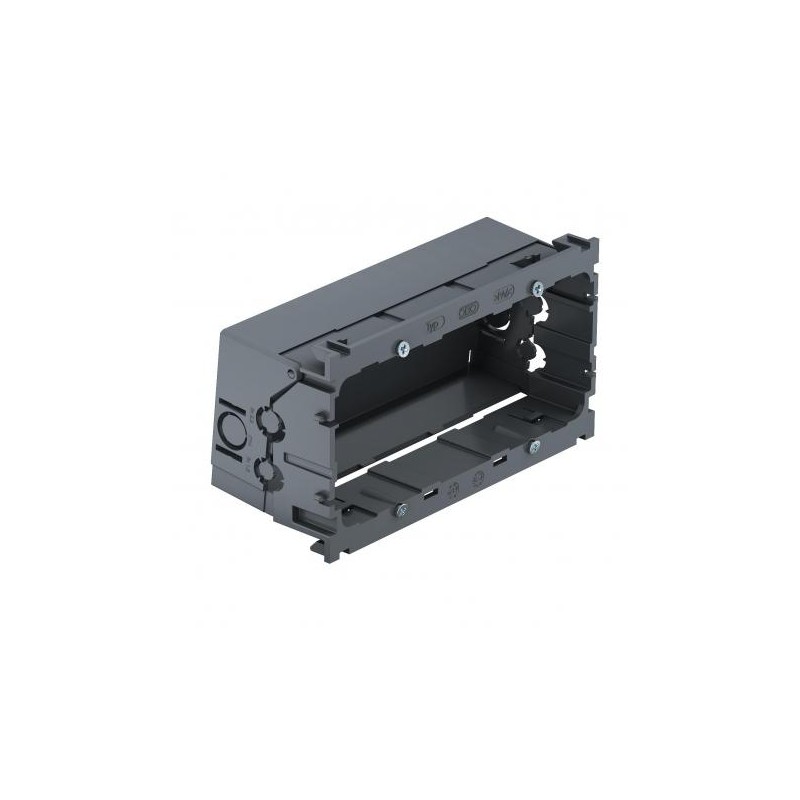

71GD7-2 6288608 OBO BETTERMANN Box carrier takes double 148x77x58mm iron gray 7011 Polyamide, PA
71GD7-2
6288608
OBO BETTERMANN
2
Box carrier takes double 148x77x58mm iron gray 7011 Polyamide, PA
Accessory mounting box 71GD7-2, double. Front locking accessory mounting box for standard switch ranges for the installation of two individual installation devices or a multiple protective contact socket. With unfolding, and also removable, base for time-saving cable connection and with feed openings for cable diameters of up to 14 mm. Halogen-free version.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Accessory mounting type | Bolts |
|---|---|
| Box mounting type | Front |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3849 kg CO2e / 1 Piece |
| Colour | Iron grey; RAL 7011 |
| Device type | With support ring/support clamp |
| Dimension | 51x76x142 |
| Fastening track | Other |
| Halogen-free | yes |
| Height | 51 mm |
|---|---|
| Length | 142 mm |
| Material | Polyamide |
| Number of units | 2 |
| Strain relief option | yes |
| Version for | Closed |
| Width | 76 mm |
| With connection compartment | yes |
| Feature Name | Feature Value |
|---|---|
| Number of units (EF000074) | 2 |
| Mounting method box (EF006402) | Front |
| Model (EF000010) | Closed |
| Type of device (EF001595) | With bearer ring/bearer bracket |
| Mounting track (EF007678) | Other |
| Mounting method installation unit (EF005086) | Screwing |
| Strain relief possibility (EF005446) | Yes |
| With connection space (EF005467) | Yes |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
