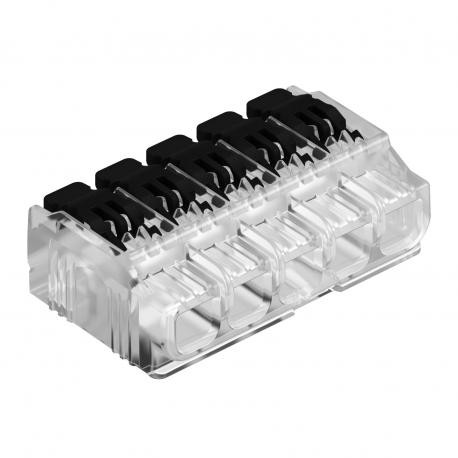

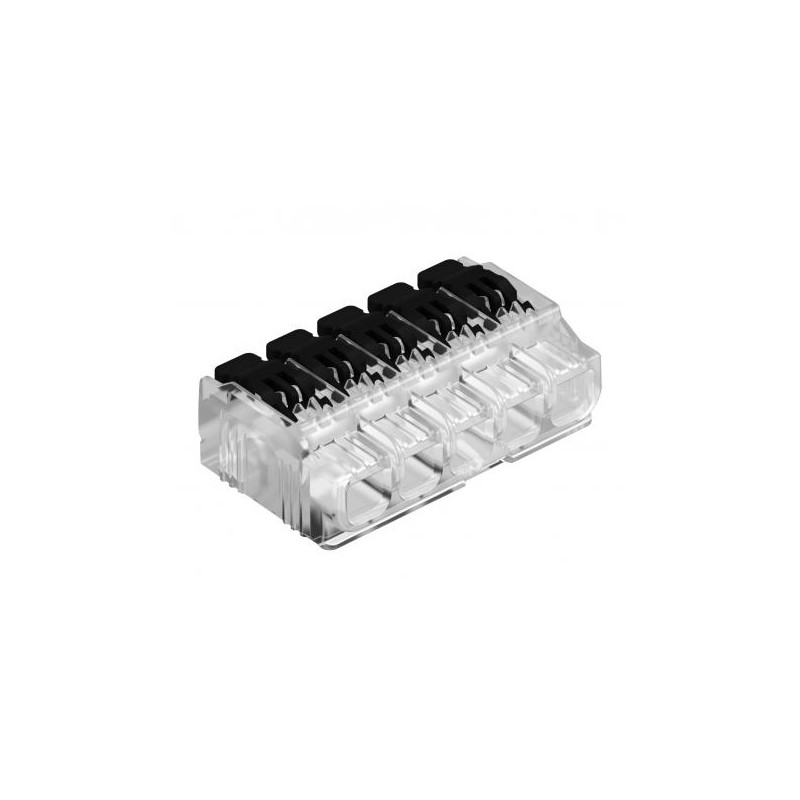

61 HSK45 2054425 OBO BETTERMANN Quick connect terminal 61 HSK45, 5 rigid/flexible cables 19.6x31.3x10.5
61 HSK45
2054425
OBO BETTERMANN
45
Quick connect terminal 61 HSK45, 5 rigid/flexible cables 19.6x31.3x10.5
Quick connect terminal 5 cables rigid/flexible 61 HSK45
Universal lever terminal block, 5-pole. Screwless universal lever terminal block for connecting electrical conductors. Suitable for flexible or rigid conductors. With release lever for inserting and removing the conductor. Rigid conductors can be inserted directly. Stripping length 11-12 mm. Inspection opening on the the top side of the terminal, accessible with phase tester and testing pin (max Ø 2 mm). Tested according to the ENEC procedure, which ensures compliance with EN 60998 and corresponds to VDE certification.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Cable diameter, max. | 2,3 mm |
|---|---|
| Cable diameter, min. | 0,5 mm |
| Colour | Transparent |
| Connectable conductor cross-section, multi-wire, max. | 4 mm² |
| Connectable conductor cross-section, multi-wire, min. | 0,2 mm² |
| Connectable conductor cross-section, single-wire, max. | 4 mm² |
| Connectable conductor cross-section, single-wire, min. | 0,2 mm² |
| Cross-section | 5 x 0.2 - 4 mm² multi-wire cables / single-wire conductors mm² |
| Dimension | 19,6x31,3x10,5 |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C |
| Height | 10,45 mm |
| Insulation material | Thermoplast |
| Length | 19,6 mm |
| No. of terminals | 5 |
| Nominal cross-section, max. | 4 mm² |
|---|---|
| Nominal cross-section, min. | 0,2 mm² |
| Nominal current | 32 A |
| Nominal voltage | 450 V |
| Permitted temperature range, max. | 85 °C |
| Permitted temperature range, min. | -5 °C |
| Pole number | 1 |
| Suitable for flexible conductors | yes |
| Suitable for multi-wire conductors | yes |
| Suitable for solid conductors | yes |
| Transparent | yes |
| Width | 31,3 mm |
| With actuating levers | yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
