3000 TMS M20 LGR 2153841 OBO BETTERMANN T-Piece Quick-Pipe 3000 TMS M20 LGR M20 Polypropylene, PP
3000 TMS M20 LGR
2153841
OBO BETTERMANN
5
T-Piece Quick-Pipe 3000 TMS M20 LGR M20 Polypropylene, PP

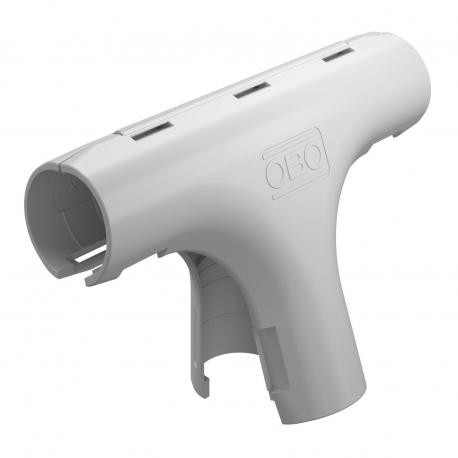

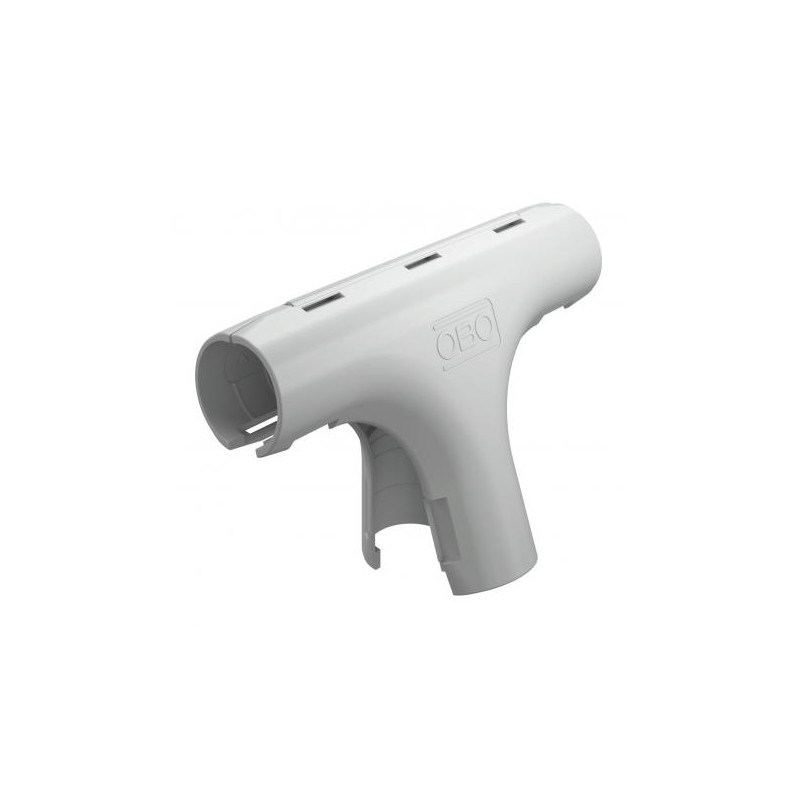

T-piece Quick-Pipe 3000 TMS M20 LGR
Quick pipe T piece, light grey. Fitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Brushed surface | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0899 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | M20 |
| Dimension B | 26 mm |
| Dimension B2 | 110 mm |
| Dimension d | 20 mm |
| Dimension L | 69 mm |
| Dimension L1 | 20 mm |
| Dimension R | 22 mm |
|---|---|
| Halogen-free | yes |
| Material | Polypropylene |
| Permitted temperature range, max. | 60 °C |
| Polished surface | no |
| Shape | T piece |
| Size | M20 |
| Version for | Connector |
| With sleeve | no |
| Feature Name | Feature Value |
|---|---|
| Shape (EF000051) | T-piece |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Other |
| Colour (EF000007) | Grey |
| Surface polished (EF006437) | No |
| Surface brushed (EF008705) | No |
| Halogen free (EF000025) | Yes |
| Model (EF000010) | Plug-in |
| With sleeve (EF006023) | No |
