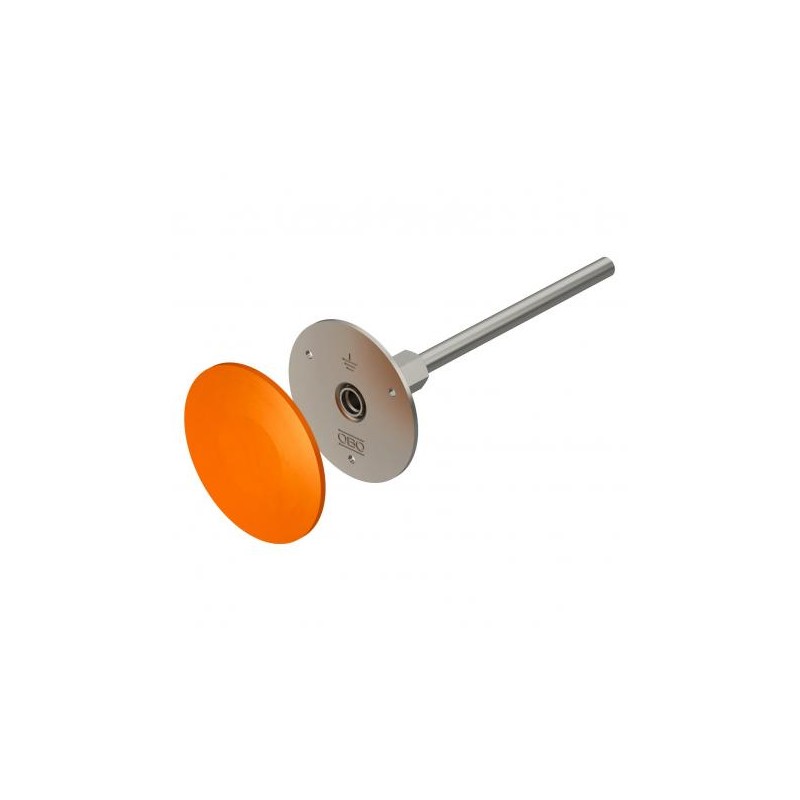

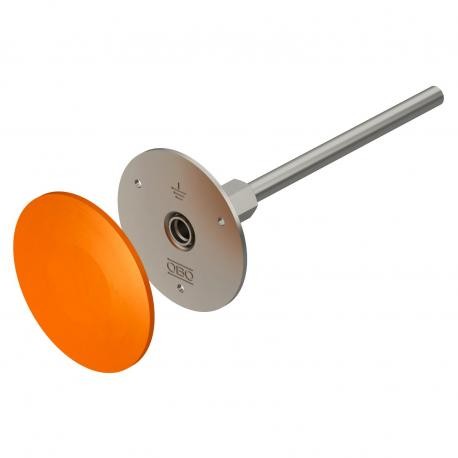

205 DG L180 V4A 5420022 OBO BETTERMANN 205 DG L180 V4A 5420022 Earthing fixed point with double thread
205 DG L180 V4A
5420022
OBO BETTERMANN
10
205 DG L180 V4A 5420022 Earthing fixed point with double thread
Fixed earthing terminal with connection bolt and double thread A4. • For connecting to earthing systems, conductors and reinforcements• Contact plate: Ø 79 mm from stainless steel, rustproof (V4A)• With M10 and M12 thread• Including plastic cover for easy installation• With connection bolt: Ø 10 mm (V4A)
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,4557 kg CO2e / 1 Piece |
|---|---|
| Diameter of the connection bolt | 10 mm |
| Diameter of the contact plate | 79 mm |
| Dimension | M10/M12 |
| Length | 180 mm |
| Lightning current carrying capacity | H/100 kA |
|---|---|
| Material | Stainless steel 1.4404 |
| Material of the connection bolt | Stainless steel, rustproof (V4A) |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 3,3 kA |
| Thread | M10/M12 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
