2760 20 V4A 5001633 OBO BETTERMANN CONNECTION TAB 2760 20 V4A
2760 20 V4A
5001633
OBO BETTERMANN
5

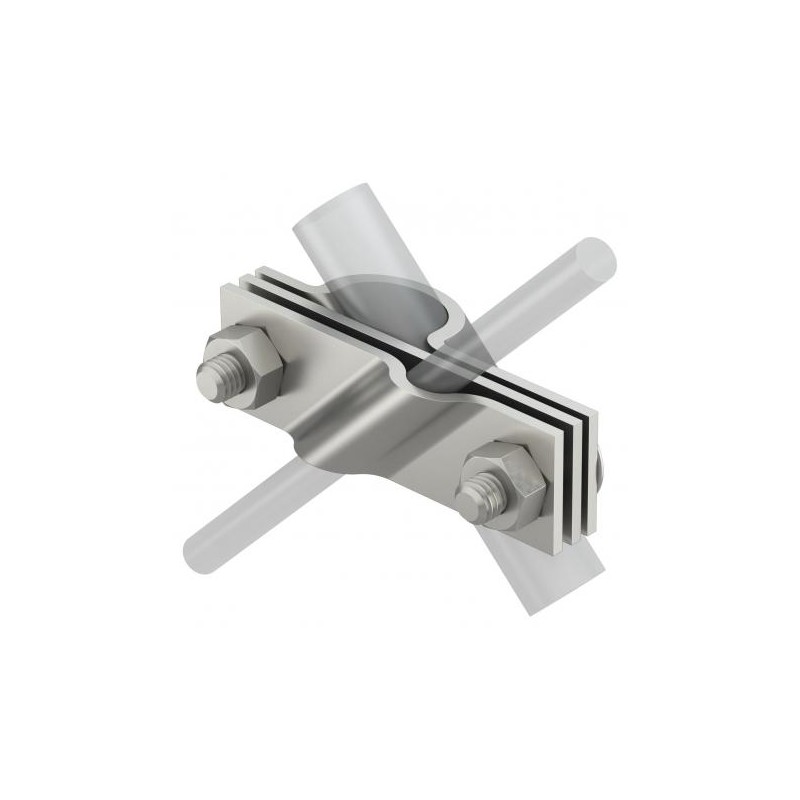

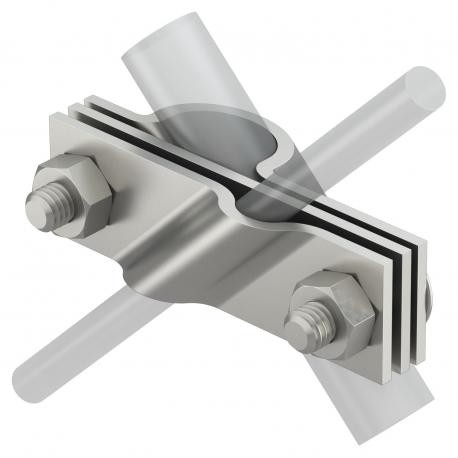

CONNECTION TAB 2760 20 V4A
Connection clip for earth rod, universal A4. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• Suitable for connecting round conductors Rd 8-10 or flat conductors to FL 40• With adapter plate• Mounted with 2 hexagonal bolts M10 x 30 and 2 hexagonal bolts M10
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Clamping range, max. | 10 mm |
|---|---|
| Clamping range, min. | 8 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,609 kg CO2e / 1 Piece |
| Dimension | 20mm |
| Dimension A | 101 mm |
| Earthing connection diameter | 20 mm |
| Fit | Rd 8-10/FL40 mm |
| for earth rods | 20 mm |
|---|---|
| Intermediate plate | no |
| Material | Stainless steel 1.4404 |
| Suitable for round conductor diameters, max. | 10 mm |
| Suitable for round conductor diameters, min. | 8 mm |
| Type | Connection clip |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
