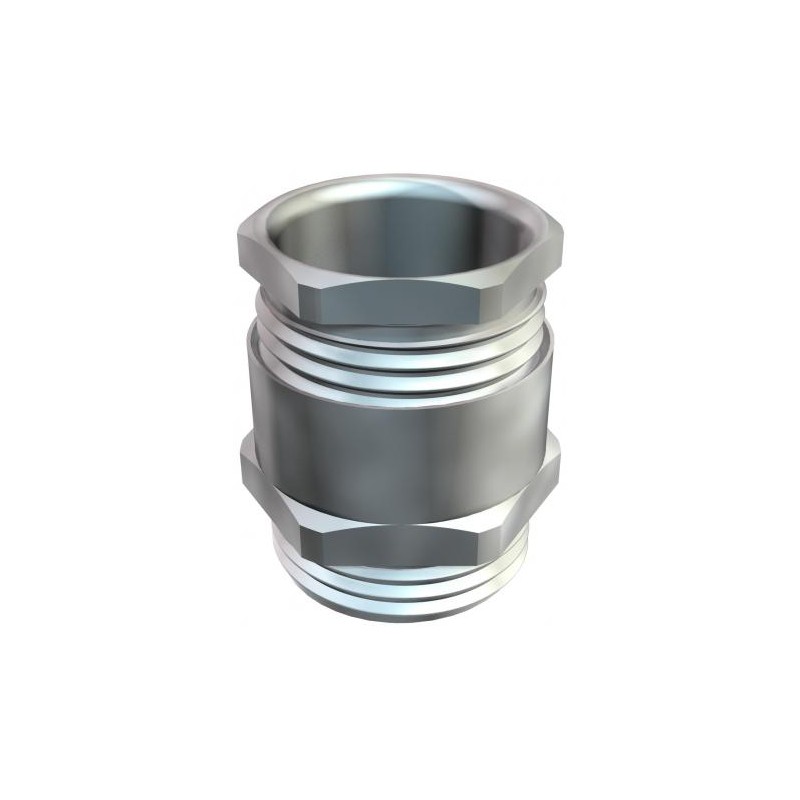

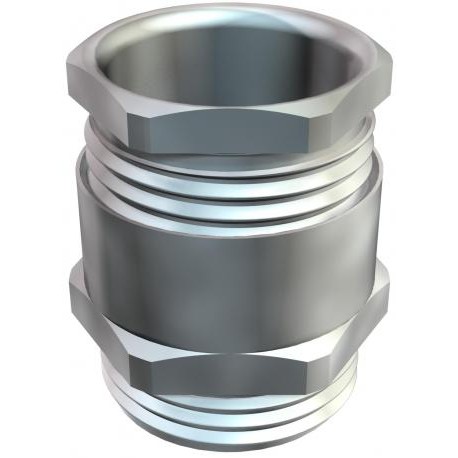

162 MS PG 7 2082620 OBO BETTERMANN Glands, with sectional packing, PG7Laton, CuZn, nickel plating
162 MS PG 7
2082620
OBO BETTERMANN
50
Glands, with sectional packing, PG7Laton, CuZn, nickel plating
Cone cable gland, PG thread, cutting ring, nickel-plated. Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel. NR/SBR sealing ring.Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.With cutting ring.* Prices according to DEL notation.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0308 kg CO2e / 1 Piece |
| Dimension | PG7 |
| Dimension E | 15,5 mm |
| Dimension L | 15 mm |
| Dimension L max. | 15 mm |
| Dimension L1 | 5 mm |
| Dimension L2 | 9 mm |
| Dimension L3 | 2 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Impact-resistant | no |
| Material | Brass |
|---|---|
| Protection rating | IP54 |
| Sealing area D, max. | 8 mm |
| Sealing area D, min. | 3,5 mm |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Surface | Nickel-plated |
| Thread | Pg 7 |
| Thread length | 5 mm |
| Thread type | PG |
| Type of seal | Cuttable sealing ring |
| WAF 1 | 14 mm |
| WAF 2 | 13 mm |
| With locknut | no |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | PG |
| Thread length (EF000368) | 5 mm |
| Suitable for cable diameter (EF005466) | 3.5 mm |
| Material (EF002169) | Metal |
| Material quality (EF001257) | Brass |
| Surface protection (EF000139) | Nickel-plated |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP54 |
| Shock resistant (EF000084) | No |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| With strain relief (EF000878) | No |
| Type of sealing (EF001217) | Cut-out ring |
| Explosion-tested version (EF004191) | No |
