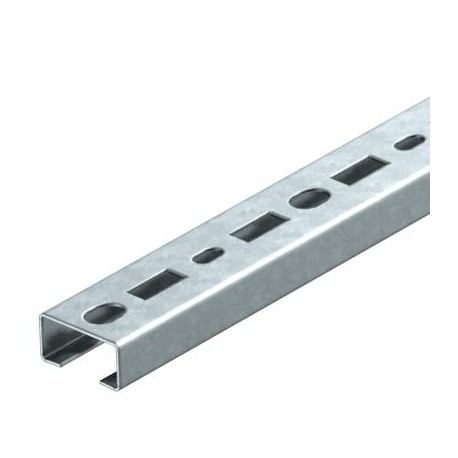

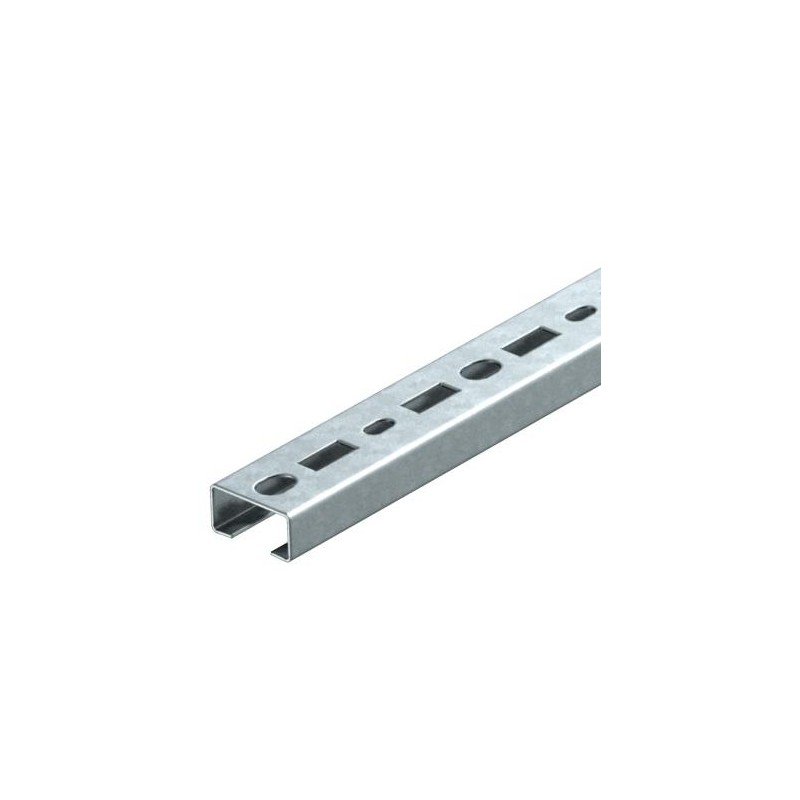

CMS3518P1000FS 1104445 OBO BETTERMANN PROFILE, PERFORATED, SLOT 17MM CMS3518P1000FS
CMS3518P1000FS
1104445
OBO BETTERMANN
10 m.
PROFILE, PERFORATED, SLOT 17MM CMS3518P1000FS
Profile CMS3518P1000FS, perfor., slot width 17mm 1000x35x18 Steel, St, strip galvanized, DIN EN 10346
1268 SL 1M FS 1104445 CM3518 profile rail, slot 17 mm, FS, perforated
Fasteners > Mounting rail/-profile
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
| Type | CMS3518P1000FS |
| Length mm | 1000 |
| Dimension W x H mm | 35 x 18 |
| Material thickness mm | 1,75 |
| Dimen- sion L mm | 1000 |
| Pack. m | 10 |
| Weight kg/100 m | 97,800 |
| Item No. | 1104445 |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 1000 mm |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 18 mm |
| Material thickness (EF000386) | 1.75 mm |
| Profile shape (EF005179) | C-profile |
| Type of perforation (EF004147) | Slotted |
| With toothing (EF000571) | No |
| Area moment of inertia Iy (EF012513) | 0.52 cm4 |
| Area of inertia Iz (EF012514) | 0.53 cm4 |
| Moment of resistance Wy (EF012503) | 2.33 cm³ |
| Moment of resistance Wz (EF012504) | 1.33 cm³ |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 0.98 kg |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
