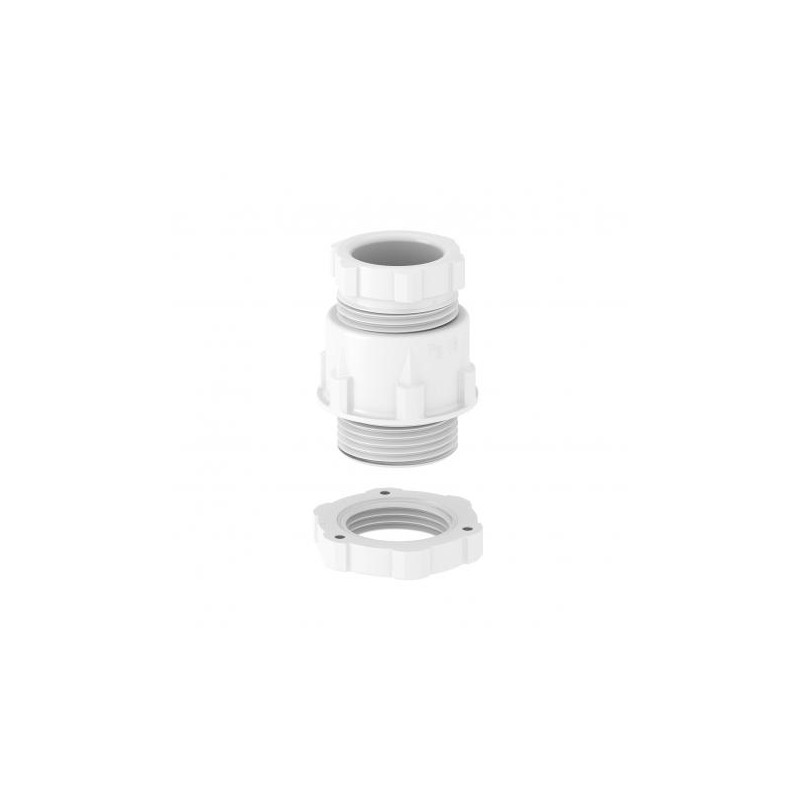

106+PG48 MG LGR 2038446 OBO BETTERMANN Glands with undernour PG48 Light grey, RAL 7035 Polystyrol, PS
106+PG48 MG LGR
2038446
OBO BETTERMANN
5
Glands with undernour PG48 Light grey, RAL 7035 Polystyrol, PS
Cone cable gland, PG thread, light grey. Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ringPg connection thread to DIN 40430Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.Impact-resistant
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3449 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | PG48 |
| Dimension D2 | 70 mm |
| Dimension D3 | 50 mm |
| Dimension D4 | 45,5 mm |
| Dimension E1 (mm) | 70 mm |
| Dimension E2 | 50,3 mm |
| Dimension E3 | 78 mm |
| Dimension L max. | 48 mm |
| Dimension L min. | 8 mm |
| Dimension L1 | 14 mm |
| Dimension L2 | 27 mm |
| Dimension L3 | 9 mm |
| Dimension L4 | 18,5 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
|---|---|
| Impact-resistant | no |
| Material | Polystyrene |
| Nominal thread size | 48 |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP65 |
| Sealing area D, max. | 40 mm |
| Sealing area D, min. | 37 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | no |
| Thread | Pg 48 |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF 1 | 65 mm |
| WAF 2 | 60 mm |
| WAF 3 | 70 mm |
| With locknut | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
