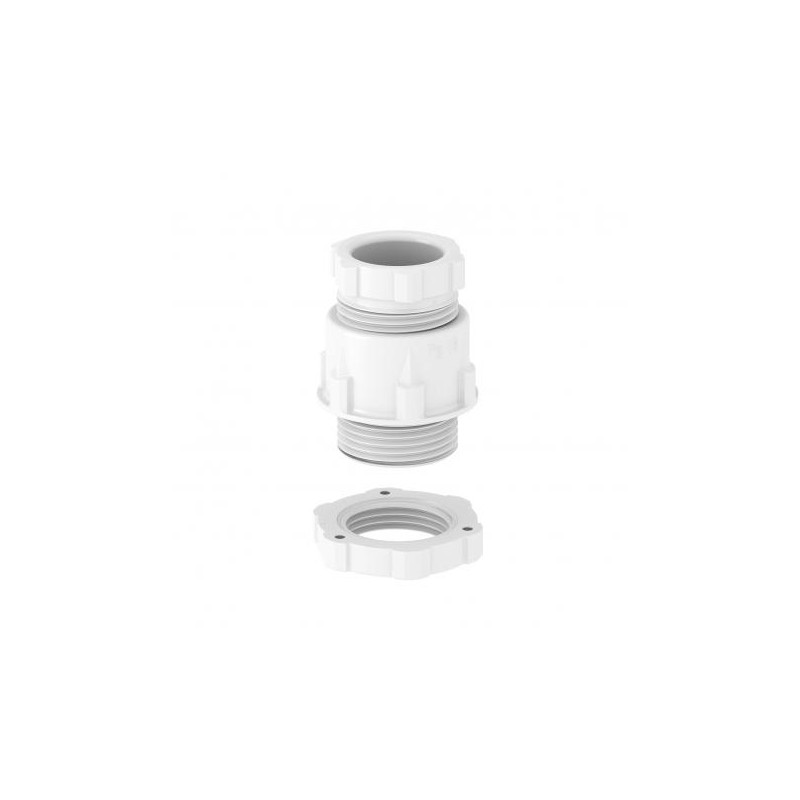

106+PG09 MG LGR 2038430 OBO BETTERMANN Glands with stun PG9 Light grey, RAL 7035 Polystyrol, PS
106+PG09 MG LGR
2038430
OBO BETTERMANN
50
Glands with stun PG9 Light grey, RAL 7035 Polystyrol, PS
Cone cable gland, PG thread, light grey. Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ringPg connection thread to DIN 40430Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.Impact-resistant
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0213 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | PG9 |
| Dimension D2 | 21,5 mm |
| Dimension D3 | 10,2 mm |
| Dimension D4 | 10,2 mm |
| Dimension E1 (mm) | 21,5 mm |
| Dimension E2 | 10,2 mm |
| Dimension E3 | 24 mm |
| Dimension L max. | 25 mm |
| Dimension L min. | 5 mm |
| Dimension L1 | 8 mm |
| Dimension L2 | 14 mm |
| Dimension L3 | 5 mm |
| Dimension L4 | 9 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
|---|---|
| Impact-resistant | no |
| Material | Polystyrene |
| Nominal thread size | 9 |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP65 |
| Sealing area D, max. | 7 mm |
| Sealing area D, min. | 4,5 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | no |
| Thread | Pg 9 |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF 1 | 19 mm |
| WAF 2 | 16 mm |
| WAF 3 | 22 mm |
| With locknut | no |
Datasheet - PDF
