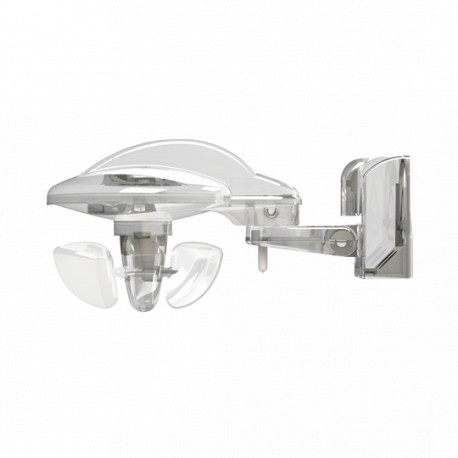

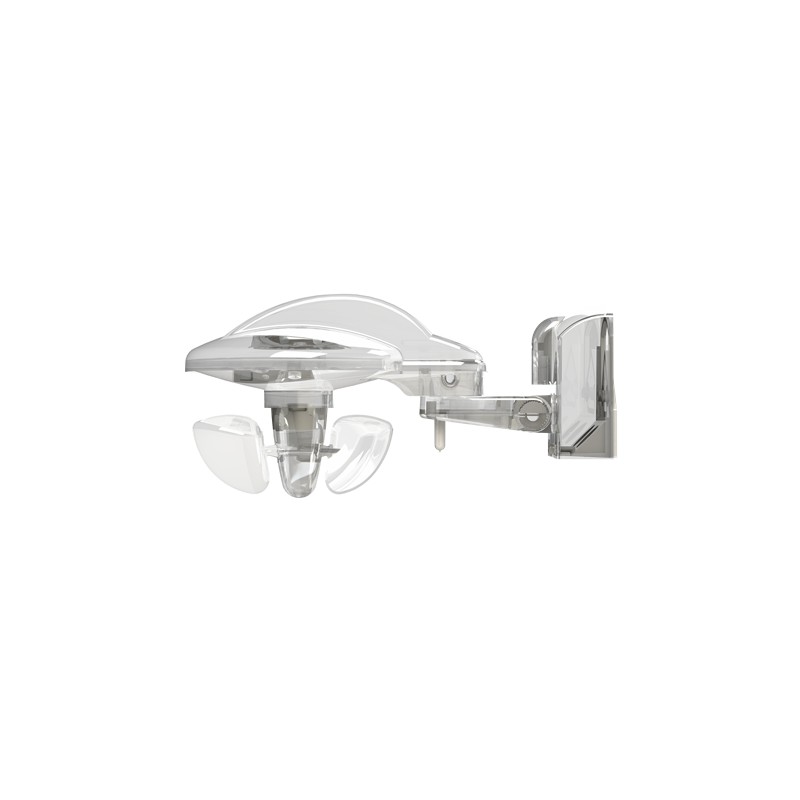

2CKA006220A0390 WS-1 NIESSEN Estación meteorológica Free@Home
2CKA006220A0390
WS-1
NIESSEN
Estación meteorológica Free@Home
Weather Station Free@Home
Weather Station
Installation bus systems > Physical sensor for bus system
Home Automation
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | Surface Mounted |
| Modular Components Included | Complete Device |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +55 °C |
| Degree of Protection | IP44 |
| Technical | |
| Data Sheet, Technical Information | 2CKA001173B8811 |
| Product Range | free@home |
| Electrical | |
| Rated Voltage (Ur) | 110 ... 230 V |
| Auxiliary Voltage AC/DC | 110 V AC/DC |
| 230 V AC/DC | |
| Rated Frequency (f) | 50 / 60 Hz |
| Dimensions | |
| Product Net Width | 118 mm |
| Product Net Height | 230 mm |
| Product Net Depth / Length | 113 mm |
| Product Net Weight | 344.5 g |
| Ordering | |
| E-Number (Finland) | 2815596 |
| E-Number (Norway) | 4549620 |
| E-Number (Sweden) | 1701132 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E5072 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 0da4b249-973d-40d8-a990-48a4e189e084 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E2522 |
| EU Data Act Compliance Declaration | 9AKK108471A4355 |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000926 - Physical sensor for bus system |
| ETIM 10 | EC000926 - Physical sensor for bus system |
| eClass | V11.0 : 27143137 |
| UNSPSC | 39121801 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006220A0390 WS-1 EN_2CKA006220A0390.pdf | 384 Kbytes |
|
