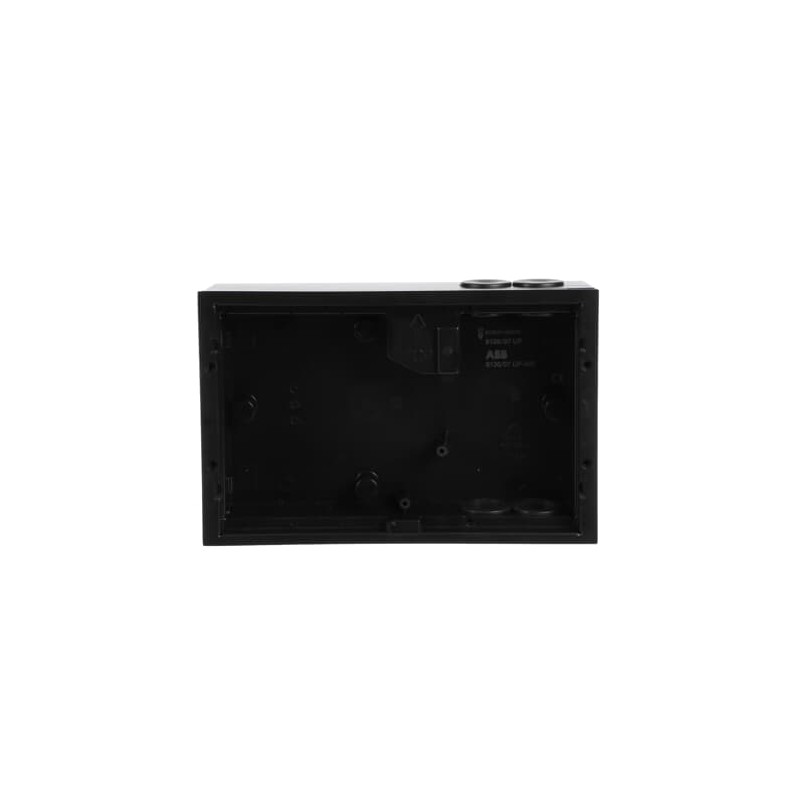

2CKA006136A0212 6136/07 UP-500 NIESSEN Recessed box for Smart Touch 7"
2CKA006136A0212
6136/07 UP-500
NIESSEN
Recessed box for Smart Touch 7"
Flush box for Smart Touch 7
For flush-mounted und hollow-wall installation of the Busch-SmartTouch 7-inch 6136/07-8xx and Busch-SmartTouch 10 ST/U10.x.11-8xx.- Windproof. - Installation dimensions: flush-mounted: (H x W x D): 152 mm x 235 mm x 60 mm hollow wall: (H x W x D): 146 mm x 227 mm x 50 mm.
Installation bus systems > Accessories for bus system
Home Automation
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- 6136/07 UP-500
- Product ID:
- 2CKA006136A0212
- EAN:
- 4011395223529
- Catalog Description:
- 6136/07 UP-500 Mounting box FM
- Long Description:
- For flush-mounted und hollow-wall installation of the Busch-SmartTouch 7-inch 6136/07-8xx and Busch-SmartTouch 10 ST/U10.x.11-8xx.
- Windproof.
- Installation dimensions:
flush-mounted: (H x W x D): 152 mm x 235 mm x 60 mm
hollow wall: (H x W x D): 146 mm x 227 mm x 50 mm.
Accessories
| Identifier | Description | Type | Qty | Unit Of Measure |
|---|---|---|---|---|
| 2TMA310051W0001 | ST/U10.1.1-811 SmartTouch 10 W/stainless | ST/U10.1.1-811 | 1 | piece |
| 2TMA310051B0001 | ST/U10.1.1-825 SmartTouch 10 B/stainless | ST/U10.1.1-825 | 1 | piece |
| 2TMA310051W0002 | ST/U10.2.1-811 SmartTouch 10 W/graphite | ST/U10.2.1-811 | 1 | piece |
| 2TMA310051B0002 | ST/U10.2.1-825 SmartTouch 10 B/graphite | ST/U10.2.1-825 | 1 | piece |
| 2TMA310051W0003 | ST/U10.3.1-811 SmartTouch 10 W/satin gold | ST/U10.3.1-811 | 1 | piece |
| 2TMA310051B0003 | ST/U10.3.1-825 SmartTouch 10 B/satin gold | ST/U10.3.1-825 | 1 | piece |
| 2TMA310051W0004 | ST/U10.4.1-811 SmartTouch 10 W/rose gold | ST/U10.4.1-811 | 1 | piece |
| 2TMA310051B0004 | ST/U10.4.1-825 SmartTouch 10 B/rose gold | ST/U10.4.1-825 | 1 | piece |
Installation
- Instructions and Manuals:
- 2CKA000073B9232
Technical
- Data Sheet, Technical Information:
- No document needed
- Product Range:
- KNX
- Accessory Type:
- Mounting Kit
- Mounting Type:
- Flush Mounted
- Product Type:
- Mounting housing
- Color:
- black
- Battery Weight:
- 0 g
- Screen Size:
- 10 in
Environmental
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CKA200000E4656
- REACH Declaration:
- 2CKA309999E9999
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 156mm
- Product Net Height:
- 238mm
- Product Net Depth / Length:
- 56.3mm
- Product Net Weight:
- 501.5g
Ordering
- Replaced Product ID (OLD):
- 6136-0-0212
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CKA200000E4656
Classifications
- ETIM 8:
- EC001583 - Accessories/spare parts for bus system
- ETIM 9:
- EC001583 - Accessories/spare parts for bus system
- WEEE Category:
- Product Not in WEEE Scope
- CN8:
- 8538 90 99
- eClass:
- V11.0 : 27143192
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CKA006136A0212 6136/07 UP-500 EN_2CKA006136A0212.pdf | 100 Kbytes |
 |
