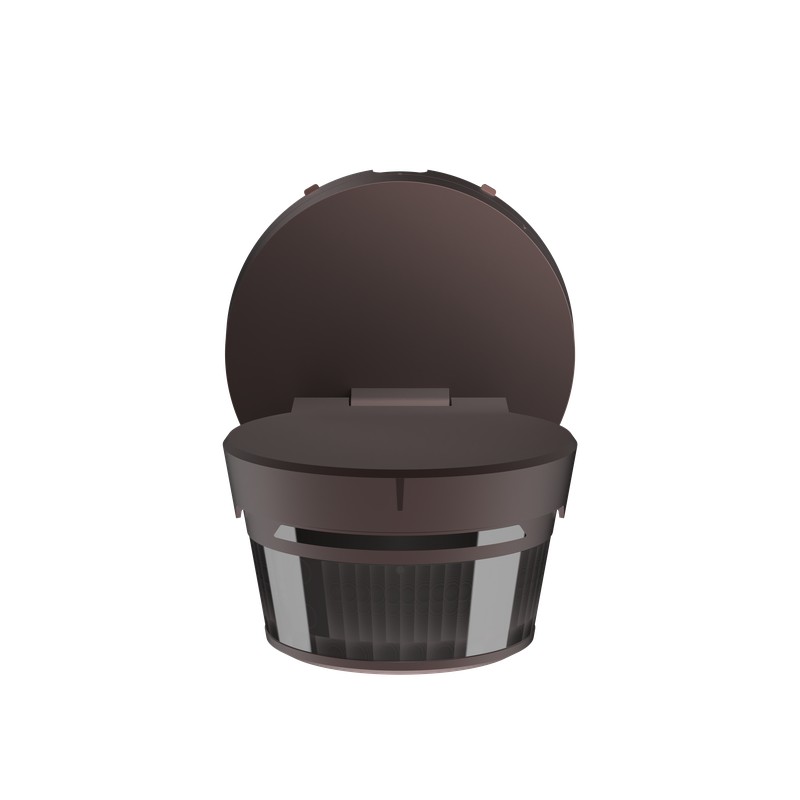

2CKA006132A0425 BW/A4.1-131 NIESSEN Det. PRO 280° KNX movement, brown
2CKA006132A0425
BW/A4.1-131
NIESSEN
Det. PRO 280° KNX movement, brown
Busch-Watchdog PRO 280 ° Motion detector KNX brown
Installation bus systems > Movement sensor for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | Surface Mounted |
| Mounting Position | Wall |
| Ceiling | |
| Mounting Height | Optimum 2.5 m |
| Modular Components Included | Complete Device |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Degree of Protection | IP55 |
| Technical | |
| Function | Activating/deactivating twilight switch operation |
| Adjusting the sensitivity | |
| Brightness sensor | |
| Logic functions | |
| Remote control by Bluetooth | |
| RGB LED | |
| Setting Options by Bluetooth | |
| Temperature sensor | |
| Twilight sensor | |
| Number of Channels | 4 |
| Compatible Bus Systems | KNX (TP) |
| Product Range | KNX |
| Transmission Standard | Bluetooth |
| Twisted Pair Wiring | |
| Minimum Switching Time | Switch-On 10 second [unit of time] |
| Manual Operation | Yes |
| Number of Batteries | 0 |
| Sensor Detection Range | 280 ° |
| Frontal 16 m | |
| Horizontal 0 ... 220 ° | |
| Lateral 16 m | |
| Vertical 0 ... 50 ° | |
| Motion Detector Features | Creep-Under Protection |
| Background Monitoring | |
| Security Standard | KNX Data Secure |
| Electrical | |
| Rated Current (In) | 12 mA |
| Design | |
| Surface Finishing | Glossy |
| Lacquered | |
| Material | Plastic |
| Thermoplastic | |
| RAL Number | Similar to RAL 8017 |
| Color | brown |
| Dimensions | |
| Product Net Width | 110 mm |
| Product Net Height | 124.4 mm |
| Product Net Depth / Length | 157.75 mm |
| Product Net Weight | 294.3 g |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108470A1777 |
| 9AKK108470A1778 | |
| 9AKK108470A1779 | |
| 9AKK108470A1780 | |
| Ordering | |
| E-Number (Norway) | 4544329 |
| E-Number (Sweden) | 1740488 |
| Circular Value | |
| Circular Design Principles Lifetime | 2CKA000073B0220 |
| ABB Site Meeting Group Waste To Landfill Target | Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| Product Durability | |
| Product Modularity | |
| Offered with Takeback Services | Take Back for Recycling |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E9630 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E5428 |
| Declaration of Conformity - UK-PSTI | 2CKA410000E0158 |
| EU Data Act Compliance Declaration | 9AKK108471A6202 |
| Cyber Security Software Support Period | 2 |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001582 - Movement sensor for bus system |
| ETIM 10 | EC001582 - Movement sensor for bus system |
| eClass | V11.0 : 27143144 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
