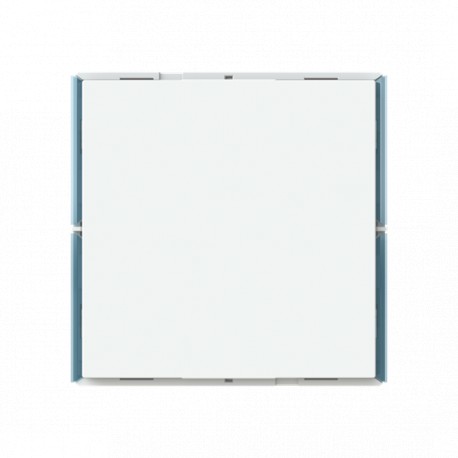

2CKA006115A0508 KK/U4.54.1 NIESSEN Keyboard 1-4 channels FTS Sky
2CKA006115A0508
KK/U4.54.1
NIESSEN
Keyboard 1-4 channels FTS Sky
KK/U4.54.1 Control element 54
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | Flush-mounted |
| Modular Components Included | Electronic Control Element |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Number of LEDs | 8 |
| Number of Buttons | 4 |
| Number of Actuation Points | 4 |
| Compatible Bus Systems | KNX (TP) |
| free@home (TP) | |
| Product Range | flexTronics |
| free@home | |
| KNX | |
| Connection Type | Pin |
| Design | |
| Design Range | Sky Niessen |
| SkyTouch | |
| Surface Finishing | Glossy |
| Untreated | |
| Material | Plastic |
| Thermoplastic | |
| Color | white |
| Dimensions | |
| Product Net Width | 54.2 mm |
| Product Net Height | 54.41 mm |
| Product Net Depth / Length | 22 mm |
| Product Net Weight | 27.8 g |
| Built-In Depth (t2) | 33 mm |
| Engineering | |
| EPLAN Data | 9AKK108464A1119 |
| Circular Value | |
| Environmental Product Declaration - EPD | 9AKK108470A4124 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E8347 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E4851 |
| Declaration of Conformity - UK-PSTI | 2CKA410000E0237 |
| EU Data Act Compliance Declaration | 9AKK108471A4355 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC000672 - Touch sensor for bus system |
| ETIM 10 | EC000672 - Touch sensor for bus system |
| eClass | V11.0 : 27143138 |
| UNSPSC | 39121801 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006115A0508 KK/U4.54.1 EN_2CKA006115A0508.pdf | 305 Kbytes |
|
