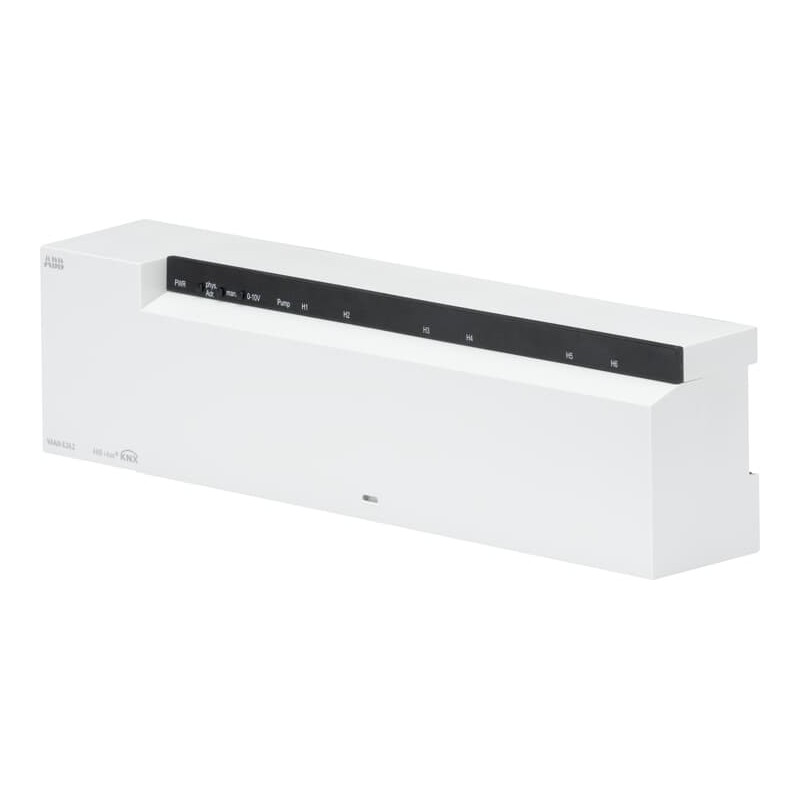

2CDG120061R0011 VAA/A 6.24.2 NIESSEN Actuador de Accionamiento de Válvula, 24 V, 6 canales, SM
2CDG120061R0011
VAA/A 6.24.2
NIESSEN
Actuador de Accionamiento de Válvula, 24 V, 6 canales, SM
Valve Actuator, 24 V, 6 channels, SM
VAA/A6.24.2 Floor Heating Controller, 6-fold, SM
Installation bus systems > Heating actuator for bus system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941209P0001 |
| Wiring Diagram | 9AKK108464A0364 |
| Mounting Type | DIN-Rail |
| Modular Components Included | Complete Device |
| Environmental | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CDC508255D0211 |
| Special Functions | Valve Protection |
| Number of Outputs | 6 |
| Compatible Bus Systems | KNX (TP) |
| Manipulated Variable | Continious |
| Product Range | KNX |
| Manual Operation | Yes |
| Number of Batteries | 0 |
| Electrical | |
| Voltage Range | 24 V |
| Auxiliary Voltage AC/DC | 230 V AC |
| Output Voltage (Uout) | 0 ... 10 V DC |
| 24 V DC | |
| Maximum Switching Current | 6 A |
| Output Current Maximum (Iout) | 1.4 A |
| Power Loss | 1 W |
| Design | |
| Color | white |
| Dimensions | |
| Product Net Width | 290 mm |
| Product Net Height | 76 mm |
| Product Net Depth / Length | 52 mm |
| Product Net Weight | 0.5 kg |
| Dimension Diagram | 2CDC072029F0018 |
| Ordering | |
| E-Number (Finland) | 2814616 |
| E-Number (Sweden) | 1739851 |
| Material Compliance | |
| RoHS Declaration | 2CDK508257D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 96a7f9e4-b6eb-4e31-9fad-e33496d3dd84 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK508257D2701 |
| Declaration of Conformity - UK-PSTI | 9AKK108464A0787 |
| EU Data Act Compliance Declaration | 9AKK108470A9399 |
| Cyber Security Software Support Period | 2 year |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001586 - Heating actuator for bus system |
| ETIM 10 | EC001586 - Heating actuator for bus system |
| eClass | V11.0 : 27143147 |
| UNSPSC | 39121801 |
| Object Classification Code | A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG120061R0011 VAA/A 6.24.2 EN_2CDG120061R0011.pdf | 79 Kbytes |
|
