> MURRPLASTIK>Wall plates and cable glands>ZL 39 87701014 MURRPLASTIK Cable entry systems and holders Type ZL strain relief Black
ANUNCIAR
Previous Product Next Product

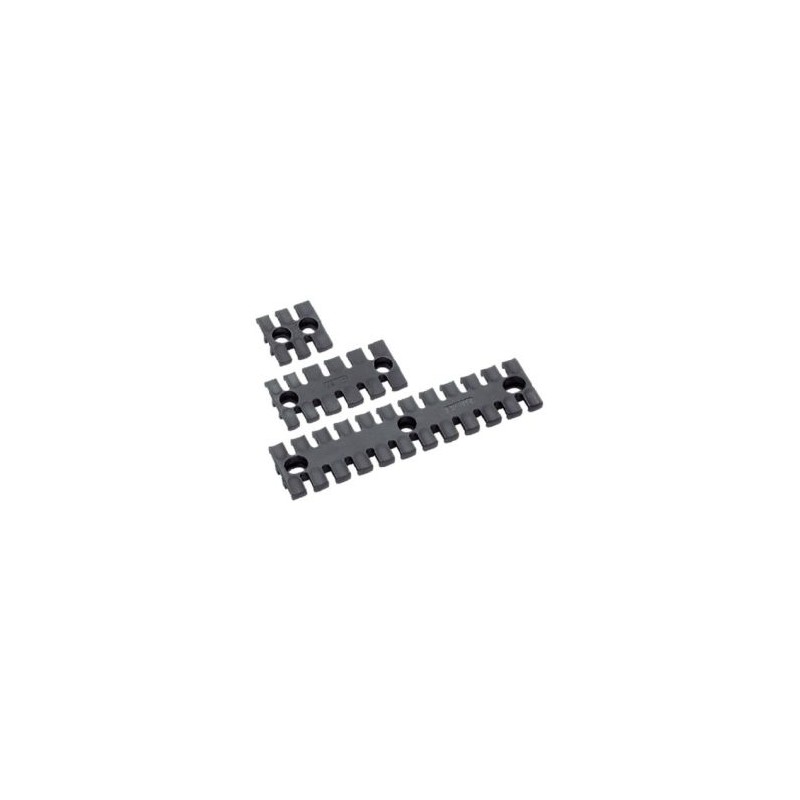

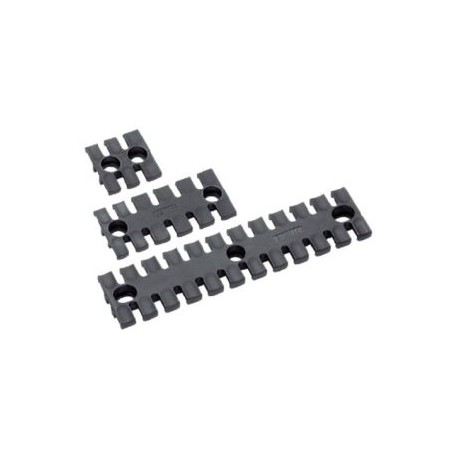

ZL 39 87701014 MURRPLASTIK Cable entry systems and holders Type ZL strain relief Black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ZL 39 87701014 MURRPLASTIK Cable entry systems and holders Type ZL strain relief Black

87701014

MURRPLASTIK

Cable entry systems and holders Type ZL strain relief Black

ZL 39, sw

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total: $4.91
Unit price: $4.91
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The ZL strain relief plate may be used wherever the strain of cables, hoses, cords, wires or conduits must be relieved or they are to be routed in a secure, easy and cost-effective way. The insertion of the ELB bush stops the cold extrusion characteristic of plastic from affecting the secure fixing of the plate. The DH spacer sleeve is needed for two-tier mounting.

Approved for railway technology (EN 45545-2)

Halogen-free

Labs free

UV-resistant

-40°C – 125°C

Polyamide 6.6

V0

EU railway approval

Type Order No. Colour No. Cables Pack qty. A mm a mm B mm EH mm G1 mm O mm Ø mm H mm
ZL 04 87701010 Black 12 1 95 74.5 35 9.2 8.5 3.1 5.5
ZL 05 87701012 Black 15 1 119 108 35 9.2 8.5 3.1 5.5
ZL 39 87701014 Black 3 1 38.5 19.5 40 10 12 3.1 9 14
ZL 60 87701016 Black 4 1 59.5 43.5 40 10 12 3.1 9 14
ZL 70 87701017 Black 5 1 69.5 43.5 40 10 12 3.1 9 14
ZL 80 87701015 Black 6 1 79.5 68 40 10 12 3.1 9 14
ZL 87/68 87701018 Black 6 1 86.5 68 40 10 12 3.1 9 14
ZL 87/50 87701019 Black 6 1 86.5 50 40 10 12 3.1 9 14
ZL 103 87701020 Black 7 1 102.5 84 40 10 12 3.1 9 14
ZL 121 87701022 Black 8 1 121 102.5 40 10 12 3.1 9 14
ZL 140 87701024 Black 9 1 139.5 121 40 10 12 3.1 9 14
ZL 180/6 87701026 Black 12 1 180 157 42 11.5 12 3.1 9 16
ZL 180/8 87701027 Black 12 1 180 157 42 11.5 13.4 3.1 11 16

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
