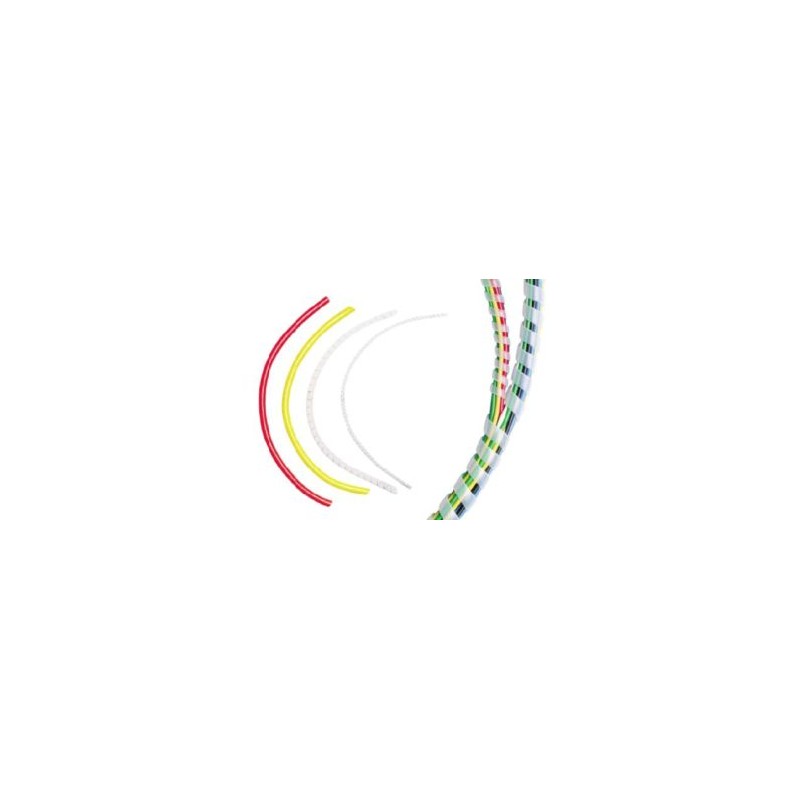

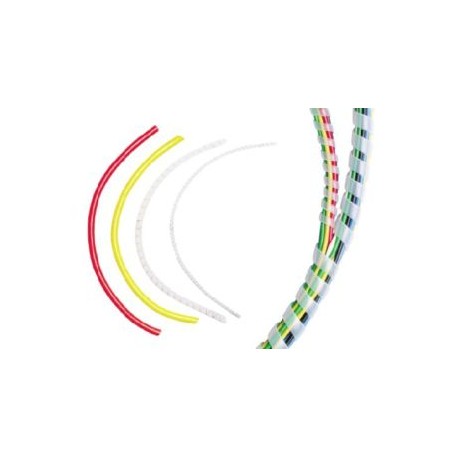

SB 50 87621250 MURRPLASTIK Conduits and fitting systems Spiral tape, type SB/SBF Orange
87621250
MURRPLASTIK
100
Conduits and fitting systems Spiral tape, type SB/SBF Orange
Wall plates and cable glands
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Spiral tapes are used to bundle cable harnesses efficiently and simply. The spiral tapes also protect the insulation of the wires. Branches of single wires or looms of cables may be made at any place. Bundling in the range from 2 - 100 mm is possible with just three sizes.
The SBF consists of flame-retardant material.
Halogen-free
-10°C – 40°C, transient / short term 60°C
i.a.w. UL94 HBi.a.w. UL94 V2
| Type | Order No. | Colour | Bundle range mm | inside mm | external mm | Weight kg/100m | Pack qty. | ||
|---|---|---|---|---|---|---|---|---|---|
| SB 12 | 87621010 | Natural colour | 2 – 12 | 1.5 | 3 | 0.4 | 50 | ||
| SB 50 | 87621012 | Natural colour | 5 – 50 | 4 | 6 | 1.5 | 100 | ||
| SB 100 | 87621014 | Natural colour | 12 – 100 | 9 | 12 | 4.8 | 50 | ||
| SB 50 | 87621022 | Black | 5 – 50 | 4 | 6 | 1.5 | 100 | ||
| SB 100 | 87621024 | Black | 12 – 100 | 9 | 12 | 1.5 | 50 | ||
| SB 50 | 87621210 | Yellow | 5 – 50 | 4 | 6 | 1.5 | 100 | ||
| SB 100 | 87621212 | Yellow | 12 – 100 | 9 | 12 | 2.8 | 50 | ||
| SB 50 | 87621250 | Orange | 5 – 50 | 4 | 6 | 1.5 | 100 | ||
| SB 100 | 87621252 | Orange | 12 – 100 | 9 | 12 | 2.8 | 50 | ||
Flame-retardant version (fire classification acc. to UL94: V0) V2) | |||||||||
| SBF 12 | 87621050 | White | 2 – 10 | 1.5 | 3 | 0.3 | 50 | ||
| SBF 50 | 87621052 | White | 5 – 40 | 4 | 6 | 1.4 | 25 | ||
| SBF 100 | 87621054 | White | 11 – 55 | 9 | 12 | 4.8 | 25 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
