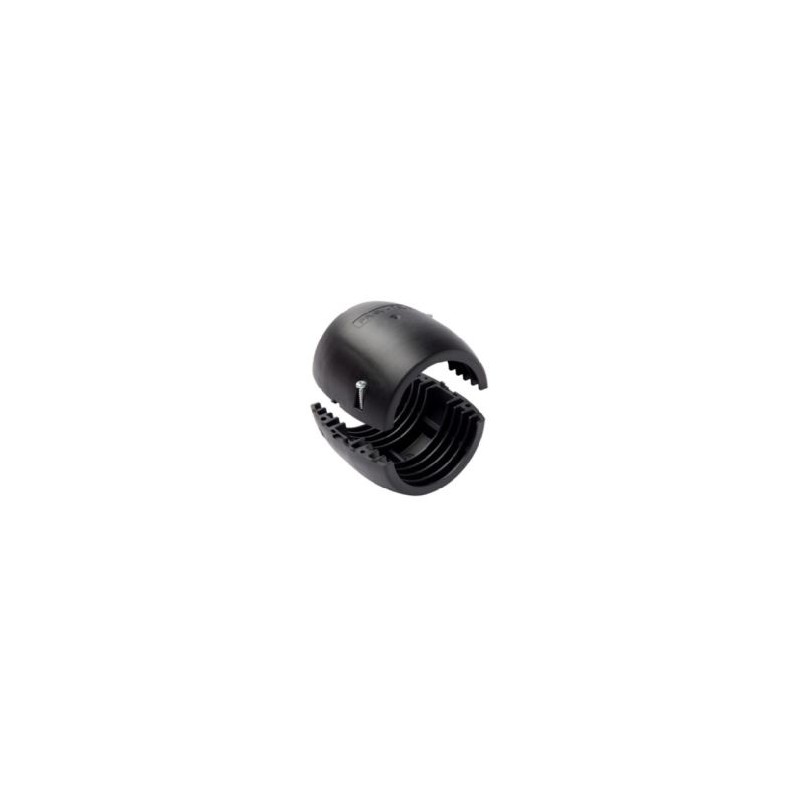

PR/SV-UNI 70 83691267 MURRPLASTIK Type PR/SV Standard design for cable protection conduits with standard corruga View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PR/SV-UNI 70 83691267 MURRPLASTIK Type PR/SV Standard design for cable protection conduits with standard corruga

PR/SV-UNI 70

83691267

MURRPLASTIK

Type PR/SV Standard design for cable protection conduits with standard corrugation, type EW-xx and high corrugation, type EWX-xx Black

More details


Accessories for Robotics

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The PR/SV protectors are made of specially modified polyamide 6. The material is halogen, phosphor and cadmium-free.

The protectors are used for impact protection and connecting cable protection conduits and also protect against wear.

The PR/SV protectors feature the following advantages:

Flat construction

Simple assembly with a sliding lock and optional lock screw assembly

High tear-out strength

Halogen-free

-40°C – 110°C, transient / short term 140°C

i.a.w. UL94 V0

ROBI approval

Type Order No. Colour Suitable for Murrflex A mm C mm Pack qty. Suitable for Murrflex EWX

Standard design for cable protection conduits with standard corrugation, type EW-xx / type EWT-xx

PR/SV-EW 21 83691058 Black M25/P21 51.6 51.2 10
PR/SV-EW 29 83691060 Black M32/P29 57.9 51 10
PR/SV-EW 36 83691062 Black M40/P36 66 51.5 10
PR/SV-EW 48 83691064 Black M50/P48 78 49.5 10
PR/SV-EW 56 83691065 Black NW56 90.8 51 5
PR/SV-EW 21 83691018 Grey M25/P21 51.6 51.2 10
PR/SV-EW 29 83691020 Grey M32/P29 57.9 51 10
PR/SV-EW 36 83691022 Grey M40/P36 66 51.5 10
PR/SV-EW 48 83691024 Grey M50/P48 78 49.5 10
PR/SV-EW 56 83691025 Grey NW56 90.8 51 5

Standard design for cable protection conduits with high corrugation, type EWX-xx

PR/SV-EWX 21 83691258 Black M25/P21 51.6 51.9 10
PR/SV-EWX 29 83691260 Black M32/P29 57.9 51 10
PR/SV-EWX 36 83691262 Black M40/P36 66 51.5 10
PR/SV-EWX 48 83691264 Black M50/P48 78 49.5 10
PR/SV-EWX 56 83691265 Black NW56 90.8 51 5
PR/SV-EWX 21 83691218 Grey M25/P21 51.6 51.9 10
PR/SV-EWX 29 83691220 Grey M32/P29 57.9 51 10
PR/SV-EWX 36 83691222 Grey M40/P36 66 51.5 10
PR/SV-EWX 48 83691224 Grey M50/P48 78 49.5 10
PR/SV-EWX 56 83691225 Grey NW56 90.8 51 5

Standard design for cable protection conduits with standard corrugation, type EW-xx and high corrugation, type EWX-xx

PR/SV-UNI 70 83691267 Black NW70 103.5 51.5 1 70 Jumbo
PR/SV-UNI 70 83691227 Grey NW70 103.5 51.5 5 70 Jumbo

Long design for cable protection conduits with standard corrugation, type EW-xx and high corrugation, type EWX-xx

PR/SV 70L 83691067 Black NW70 103.5 97 1 70 Jumbo
PR/SV 70L 83691069 Red NW70 103.5 97 1 70 Jumbo
