> MURRPLASTIK>Wall plates and cable glands>KDP/X 24/17 87301355 MURRPLASTIK Cable entry systems and holders Plastic cable entry plate of Type KDP/X 24 Blac
ANUNCIAR
Previous Product Next Product

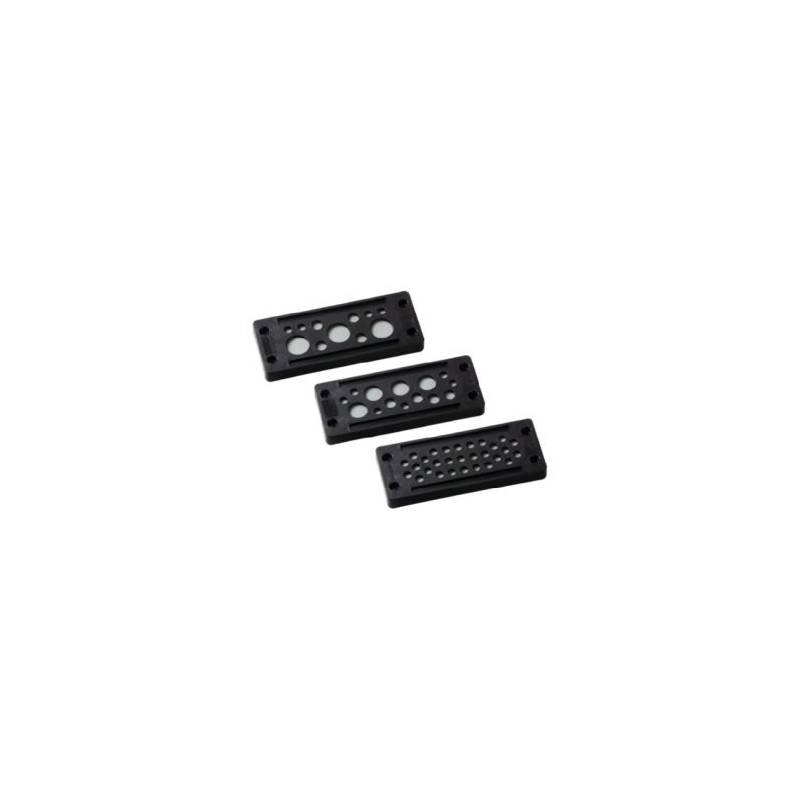

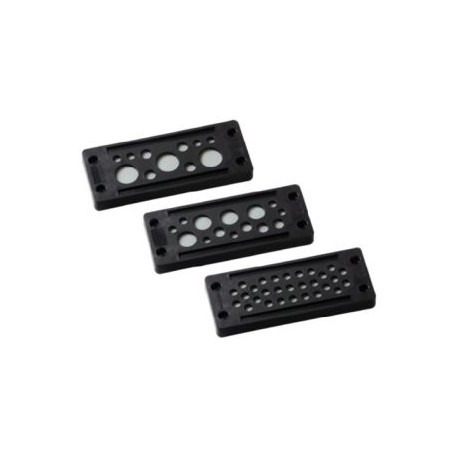

KDP/X 24/17 87301355 MURRPLASTIK Cable entry systems and holders Plastic cable entry plate of Type KDP/X 24 Blac View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDP/X 24/17 87301355 MURRPLASTIK Cable entry systems and holders Plastic cable entry plate of Type KDP/X 24 Blac

87301355

MURRPLASTIK

Cable entry systems and holders Plastic cable entry plate of Type KDP/X 24 Black

KDP/X 24/17, sw

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total: $50.29
Unit price: $50.29
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


4. Generation of our cable entry plates, plastic, square, with improved clip-in function and one instead of two elastomer plates.

Economical connection technology for tool-free wiring of equipment and machinery. Wherever the rapid and economical introduction of cables and/or pneumatic hoses in confined spaces is essential. The alternative to cable fittings. Suitable for standard cut-outs for 24-pin Harting and Wieland connectors. For snap-in fastening and/or screwing in place.

Snap-in at plate thicknesses of 1.5 to 2.0 mm

High degree of strain relief

Labs free

UV-resistant

-30°C – 70°C

Polyamide 6.6TPU / EPDM

IP 65

Type Order No. Colour No. Openings Openings Quantity / Ø mm Pack qty. Installation height mm A mm B mm a mm b mm c mm d mm e mm
KDP/X 24/10 87301305 Black 10
2 x 3.00 – 6.50
1 x 5.00 – 9.20
5 x 9.00 – 14.00
2 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/X 24/11 87301315 Black 11
4 x 3.00 – 6.50
4 x 5.00 – 9.20
3 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/X 24/12 87301325 Black 12
12 x 8.00 – 12.00
1 15 59 147 112 36 65 16 5.5
KDP/X 24/13 87301335 Black 13
2 x 3.00 – 5.50
6 x 4.10 – 8.10
4 x 9.00 – 14.00
1 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/X 24/14 87301345 Black 14
6 x 3.00 – 6.50
4 x 5.00 – 9.20
4 x 9.60 – 15.90
1 15 59 147 112 36 65 16 5.5
KDP/X 24/17 87301355 Black 17
17 x 5.00 – 9.20
1 15 59 147 112 36 65 16 5.5
KDP/X 24/17-1 87301356 Black 17
11 x 3.00 – 6.50
1 x 4.10 – 8.10
5 x 8.00 – 12.50
1 15 59 147 112 36 65 16 5.5
KDP/X 24/22 87301365 Black 22
16 x 3.00 – 6.50
4 x 5.00 – 9.20
2 x 8.00 – 12.50
1 15 59 147 112 36 65 16 5.5
KDP/X 24/23 87301375 Black 23
23 x 4.10 – 8.10
1 15 59 147 112 36 65 16 5.5
KDP/X 24/29 87301385 Black 29
29 x 3.00 – 6.50
1 15 59 147 112 36 65 16 5.5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
