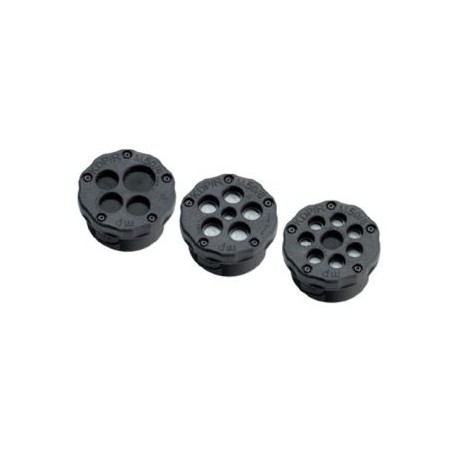

KDP/R-KGM M63/13 87301043 MURRPLASTIK Cable entry systems and holders Type KDP/R-KGM cable entry plate, round Bl View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDP/R-KGM M63/13 87301043 MURRPLASTIK Cable entry systems and holders Type KDP/R-KGM cable entry plate, round Bl

87301043

MURRPLASTIK

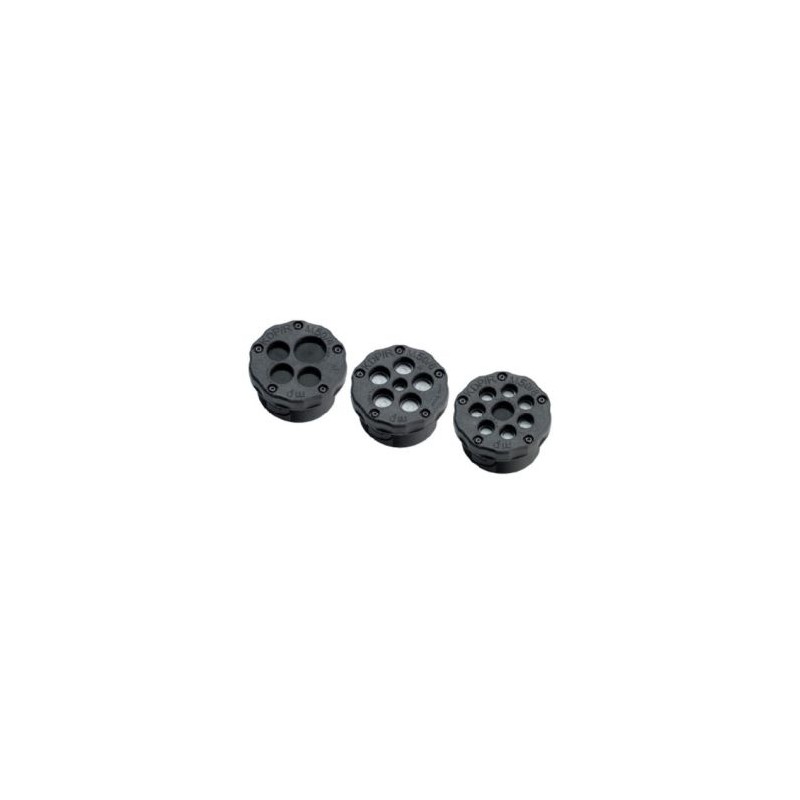

Cable entry systems and holders Type KDP/R-KGM cable entry plate, round Black

KDP/R-KGM M63/13, redonda, sw

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total: $58.31
Unit price: $58.31
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Economical connection technology for tool-free wiring of equipment and machinery. Extremely quick mounting of cables and pneumatic hoses. The alternative to cable fittings. For snap-in fastening or screwing in place with a lock nut.

For snapping into 1.5 – 2.0 mm plates

Integrated seal

Compact design

High protection class

Supply includes the lock nut

-30°C – 90°C

Polyamide 6.6NBR / EPDM

IP 65

CSA approval

Type Order No. Colour No. of openings total Openings Quantity / Ø mm Thread metric A mm B mm C mm D mm Pack qty.
KDP/R-KGM M50/04 87301031 Black 4
3 x 6.00 – 10.00
1 x 9.60 – 15.90
M50x1.5 58 9 24 50.5 1
KDP/R-KGM M50/06 87301033 Black 6
1 x 3.00 – 5.50
5 x 5.00 – 9.20
M50x1.5 58 9 24 50.5 1
KDP/R-KGM M50/08 87301035 Black 8
7 x 3.50 – 6.50
1 x 6.00 – 10.00
M50x1.5 58 9 24 50.5 1
KDP/R-KGM M50/31 87301039 Black 31
31 x 1.50 – 3.10
M50x1.5 58 9 24 50.5 1
KDP/R-KGM M63/08 87301041 Black 8
2 x 3.00 – 6.50
4 x 5.00 – 9.20
2 x 9.60 – 15.90
M63x1.5 71 9 25 63.5 1
KDP/R-KGM M63/13 87301043 Black 13
6 x 3.00 – 5.50
6 x 3.50 – 6.50
1 x 6.00 – 10.00
M63x1.5 71 9 25 63.5 1
KDP/R-KGM M63/19 87301045 Black 19
19 x 3.00 – 5.00
M63x1.5 71 9 25 63.5 1
KDP/R-KGM M63/46 87301049 Black 46
46 x 1.50 – 3.10
M63x1.5 71 9 25 63.5 1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
