> MURRPLASTIK>Wall plates and cable glands>KDP/N 24/29 87301180 MURRPLASTIK Cable entry systems and holders Cable entry plate plastic type KDP/N 24 Black
ANUNCIAR
Previous Product Next Product

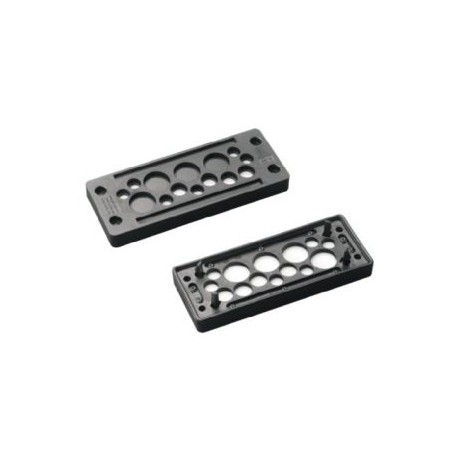

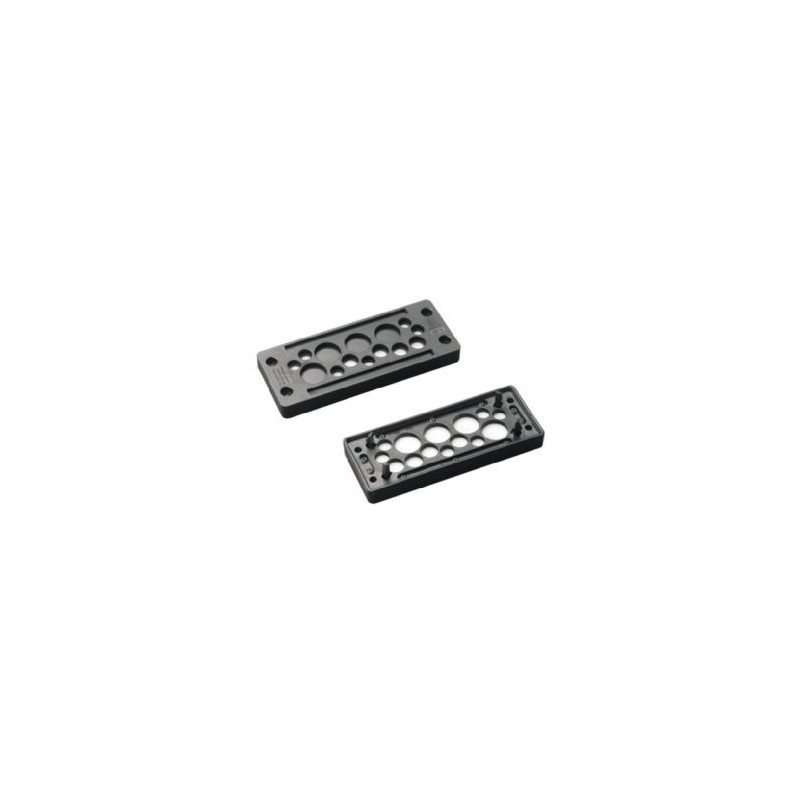

KDP/N 24/29 87301180 MURRPLASTIK Cable entry systems and holders Cable entry plate plastic type KDP/N 24 Black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDP/N 24/29 87301180 MURRPLASTIK Cable entry systems and holders Cable entry plate plastic type KDP/N 24 Black

87301180

MURRPLASTIK

Cable entry systems and holders Cable entry plate plastic type KDP/N 24 Black

KDP/N 24/29, sw

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total: $75.99
Unit price: $75.99
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


2. generation of our cable entry plates, plastic, square, with improved clip-in function.

Economical connection technology for tool-free wiring of equipment and machinery. Wherever the rapid and economical introduction of cables and/or pneumatic hoses in confined spaces is essential. The alternative to cable fittings. Suitable for standard cut-outs for 24-pin Harting and Wieland connectors. For snap-in fastening and/or screwing in place.

Snap-in at plate thicknesses of 1.5 to 2.0 mm

High degree of strain relief

2 elastomer panels (seals)

Labs free

UV-resistant

-30°C – 70°C

Polyamide 6.6TPU / NBR / EPDM

IP 65

Type Order No. Colour No. Openings Openings Quantity / Ø mm Pack qty. Installation height mm A mm B mm a mm b mm c mm d mm e mm
KDP/N 24/10 87301108 Black 10
2 x 3.00 – 6.50
1 x 5.00 – 9.20
5 x 9.00 – 14.00
2 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/N 24/11 87301110 Black 11
4 x 3.00 – 6.50
4 x 5.00 – 9.20
3 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/N 24/12 87301120 Black 12
12 x 8.00 – 12.00
1 15 59 147 112 36 65 16 5.5
KDP/N 24/13 87301130 Black 13
2 x 3.00 – 5.50
6 x 4.10 – 8.10
4 x 9.00 – 14.00
1 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/N 24/14 87301140 Black 14
6 x 3.00 – 6.50
4 x 5.00 – 9.20
4 x 9.60 – 15.90
1 15 59 147 112 36 65 16 5.5
KDP/N 24/17 87301150 Black 17
17 x 5.00 – 9.20
1 15 59 147 112 36 65 16 5.5
KDP/N 24/17-1 87301151 Black 17
11 x 3.00 – 6.50
1 x 4.10 – 8.10
5 x 8.00 – 12.50
1 15 59 147 112 36 65 16 5.5
KDP/N 24/22 87301160 Black 22
16 x 3.00 – 6.50
4 x 5.00 – 9.20
2 x 8.00 – 12.50
1 15 59 147 112 36 65 16 5.5
KDP/N 24/22, PU 100 87301161 Black 22
16 x 3.00 – 6.50
4 x 5.00 – 9.20
2 x 8.00 – 12.50
100 15 59 147 112 36 65 16 5.5
KDP/N 24/23 87301170 Black 23
23 x 4.10 – 8.10
1 15 59 147 112 36 65 16 5.5
KDP/N 24/29 87301180 Black 29
29 x 3.00 – 6.50
1 15 59 147 112 36 65 16 5.5
KDP/N 24/29, open, PU 100 87301182 Black 29
29 x 3.00 – 6.50
100 15 59 147 112 36 65 16 5.5
KDP/N 24/80 87301190 Black 80
78 x 1.50 – 2.60
2 x 2.50 – 5.00
1 15 59 147 112 36 65 16 5.5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
