> MURRPLASTIK>Wall plates and cable glands>KDP/F 24-MULTI 87302030 MURRPLASTIK Cable entry systems and holders Cable entry plate plastic, type KDP/F 24 Bla
ANUNCIAR
Previous Product Next Product

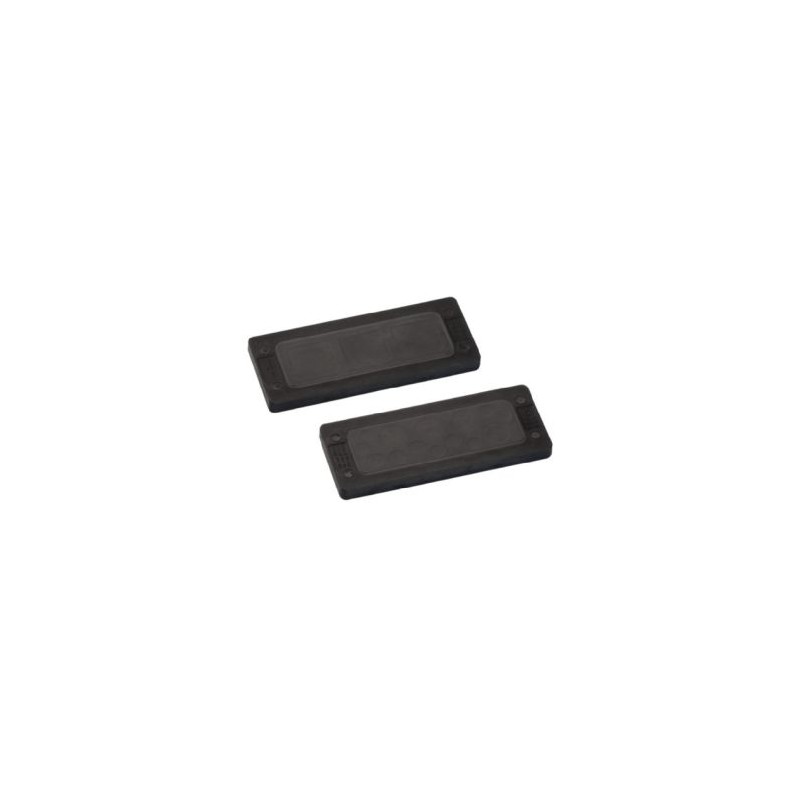

KDP/F 24-MULTI 87302030 MURRPLASTIK Cable entry systems and holders Cable entry plate plastic, type KDP/F 24 Bla View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDP/F 24-MULTI 87302030 MURRPLASTIK Cable entry systems and holders Cable entry plate plastic, type KDP/F 24 Bla

87302030

MURRPLASTIK

Cable entry systems and holders Cable entry plate plastic, type KDP/F 24 Black

KDP/F 24-multi, sw

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total: $24.36
Unit price: $24.36
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The KDP/F 24 cable entry plate is an entry and fastening system for cables and pneumatic hoses such as those used in control cabinets, plant or machine construction. Wherever quick assembly, cable-protection and high packing density are required, this cable entry plate can be used.

Enormous time savings in assembly

High packing density

Large wire diameter ranges

Several cables may be fed through an opening together

Very flat design

Labs free

UV-resistant

-30°C – 70°C

Polypropylene (PP)TPE

HB

IP 65

Type Order No. Colour No. Openings Openings Quantity / Ø mm Pack qty. Installation height mm A mm B mm a mm b mm c mm d mm e mm
KDP/F 24-14 87302010 Black 14
6 x 0.00 – 9.00
4 x 0.00 – 11.00
4 x 0.00 – 18.00
1 10 148 60 112 36 65 16 5.5
KDP/F 24-14, PU 100 87302011 Black 14
6 x 0.00 – 9.00
4 x 0.00 – 11.00
4 x 0.00 – 18.00
100 10 148 60 112 36 65 16 5.5
KDP/F 24-22 87302020 Black 22
16 x 0.00 – 9.00
4 x 0.00 – 11.00
2 x 0.00 – 15.00
1 10 148 60 112 36 65 16 5.5
KDP/F 24-22, PU 100 87302021 Black 22
16 x 0.00 – 9.00
4 x 0.00 – 11.00
2 x 0.00 – 15.00
100 10 148 60 112 36 65 16 5.5
KDP/F 24-28 87302040 Black 28
28 x 0.00 – 9.00
1 10 148 60 112 36 65 16 5.5
KDP/F 24-28, PU 100 87302041 Black 28
28 x 0.00 – 9.00
100 10 148 60 112 36 65 16 5.5
KDP/F 24-46 87302050 Black 46
46 x 0.00 – 6.50
1 10 148 60 112 36 65 16 5.5
KDP/F 24-46, PU 100 87302051 Black 46
46 x 0.00 – 6.50
100 10 148 60 112 36 65 16 5.5
KDP/F 24-multi 87302030 Black 3
3 x 0.00 – 27.00
1 10 148 60 112 36 65 16 5.5
KDP/F 24-multi, PU 100 87302031 Black 3
3 x 0.00 – 27.00
100 10 148 60 112 36 65 16 5.5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
