> MURRPLASTIK>Wall plates and cable glands>KDP/EN-RA 24/80 87301295 MURRPLASTIK Cable entry systems and holders Type KDP/EN-RA cable entry plate, plastic B
ANUNCIAR
Previous Product Next Product

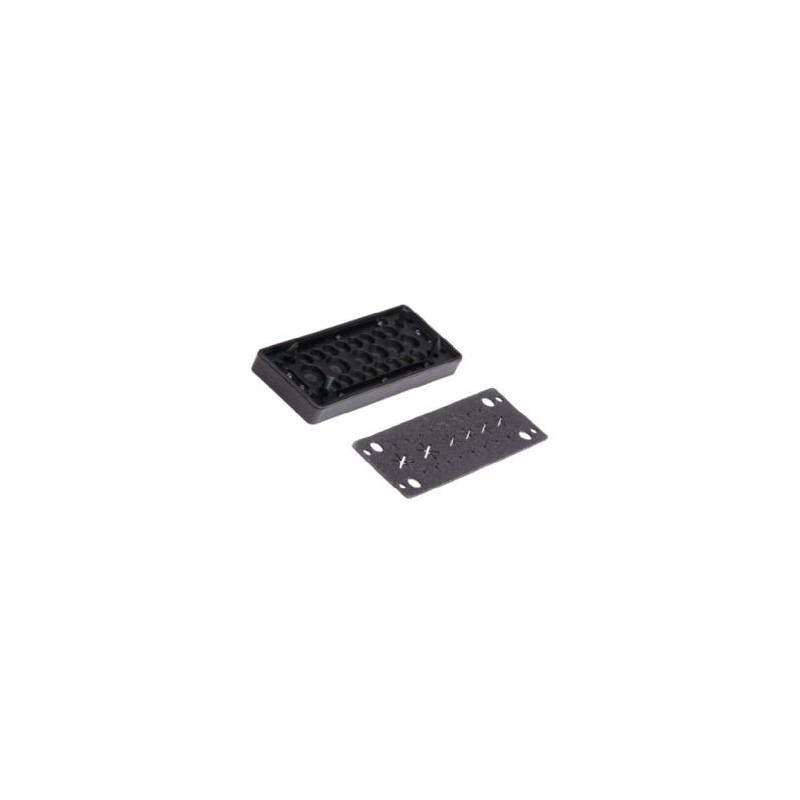

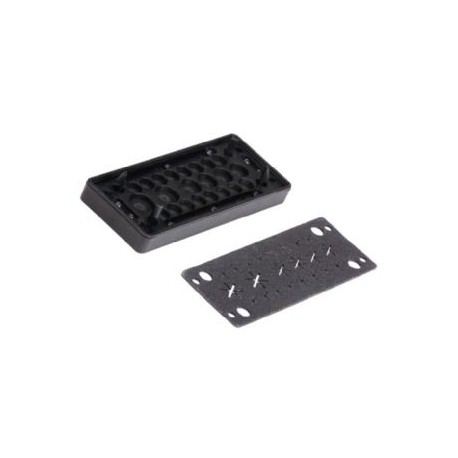

KDP/EN-RA 24/80 87301295 MURRPLASTIK Cable entry systems and holders Type KDP/EN-RA cable entry plate, plastic B View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDP/EN-RA 24/80 87301295 MURRPLASTIK Cable entry systems and holders Type KDP/EN-RA cable entry plate, plastic B

87301295

MURRPLASTIK

Cable entry systems and holders Type KDP/EN-RA cable entry plate, plastic Black

KDP/EN-RA 24/80, sw

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total: $98.97
Unit price: $98.97
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The KDP/EN-RA 24 cable gland plates are made of modified Polyamide 6 and are cable entry and retaining systems for cables and pneumatic hoses, used in control cabinets or plant construction specifically in the railway industry. The fire protection mat, enclosed in the supply, reacts at temperatures exceeding 160°C by expanding and thereby closing off the opening completely fire resistant. Wherever quick assembly, cable-protecting and high packing density are required, the cable insertion system is used.

Special benefits of the KDP/EN-RA 24 are:

Enormous time savings in assembly

High packing density

Standardised cut-out dimensions

Option of labelling

Protection category IP 65

Room integrity (firewall)

Approved for railway technology (EN 45545-2 / 3x HL3)

Labs free

UV-resistant

-30°C – 70°C

Polyamide 6EPDM

V0

IP 65

EU railway approval

Type Order No. Colour No. Openings Openings Quantity / Ø mm Pack qty. Installation height mm A mm B mm a mm b mm c mm d mm e mm
KDP/EN-RA 24/11 87301215 Black 11
4 x 3.00 – 6.50
4 x 5.00 – 9.20
3 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/EN-RA 24/12 87301225 Black 12
12 x 8.00 – 12.00
1 15 59 147 112 36 65 16 5.5
KDP/EN-RA 24/13 87301235 Black 13
2 x 3.00 – 5.50
6 x 4.10 – 8.10
4 x 9.00 – 14.00
1 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/EN-RA 24/14 87301245 Black 14
6 x 3.00 – 6.50
4 x 5.00 – 9.20
4 x 9.60 – 15.90
1 15 59 147 112 36 65 16 5.5
KDP/EN-RA 24/17 87301255 Black 17
17 x 5.00 – 9.20
1 15 59 147 112 36 65 16 5.5
KDP/EN-RA 24/17-1 87301256 Black 17
11 x 3.00 – 6.50
1 x 4.10 – 8.10
5 x 8.00 – 12.50
1 15 59 147 112 36 65 16 5.5
KDP/EN-RA 24/22 87301265 Black 22
16 x 3.00 – 6.50
4 x 5.00 – 9.20
2 x 8.00 – 12.50
1 15 59 147 112 36 65 16 5.5
KDP/EN-RA 24/23 87301275 Black 23
23 x 4.10 – 8.10
1 15 59 147 112 36 65 16 5.5
KDP/EN-RA 24/29 87301285 Black 29
29 x 3.00 – 6.50
1 15 59 147 112 36 65 16 5.5
KDP/EN-RA 24/80 87301295 Black 80
78 x 1.50 – 2.60
2 x 2.50 – 5.00
1 15 59 147 112 36 65 16 5.5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
