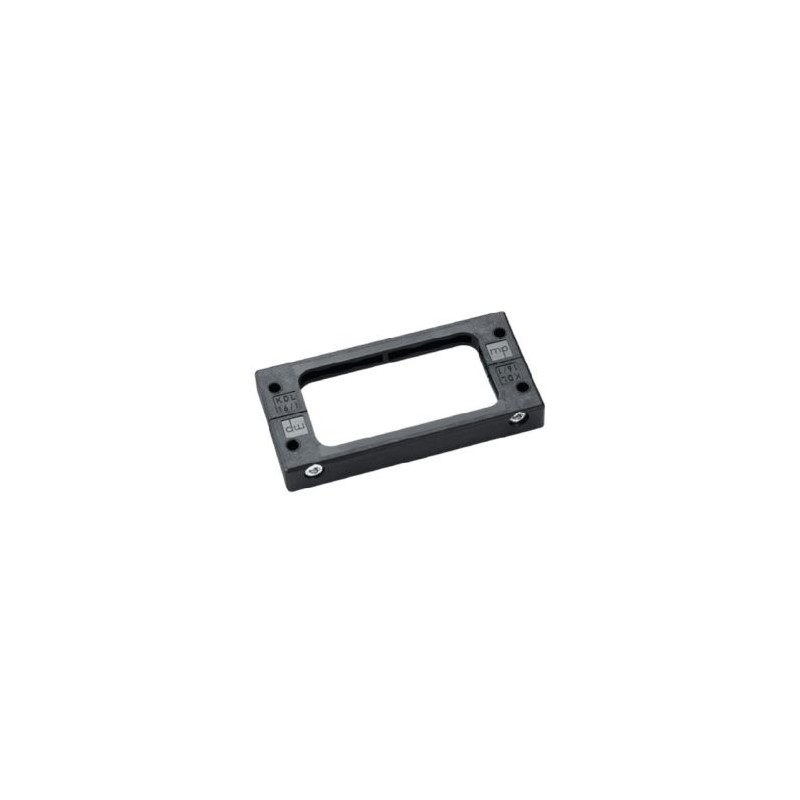

KDL/S 16 87173004 MURRPLASTIK Cable entry systems and holders Cable entry system, type KDL/S 16 For standard cut
87173004
MURRPLASTIK
Cable entry systems and holders Cable entry system, type KDL/S 16 For standard cut-out size 16 Black
KDL/S 16, sw
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The KDL/S cable entry system is a custom plate that allows various kinds of cables to be inserted to accommodate customers' requests and to be able to seal openings. The internal KDT/S grommet can be custom designed based on the customer's requirements desires.
Fits standard cut-outs for 16-pin plug connectors (e.g. Harting, Wieland and Rittal).
Individual solutions
Matching grommet: KDT/S
-40°C – 80°C
Polyamide 6.6
V0
IP 54
| Type | Order No. | Colour | Pack qty. | A mm | B mm | C mm | D mm | a mm | b mm | c mm | d mm | e mm | EH mm | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For standard cut-out size 16 | |||||||||||||||
| KDL/S 16 | 87173004 | Black | 1 | 116 | 58 | 82 | 43 | 86 | 36 | 51.5 | 16 | 5.5 | 15 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
