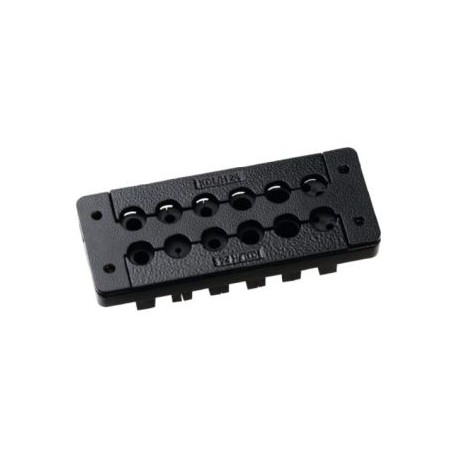

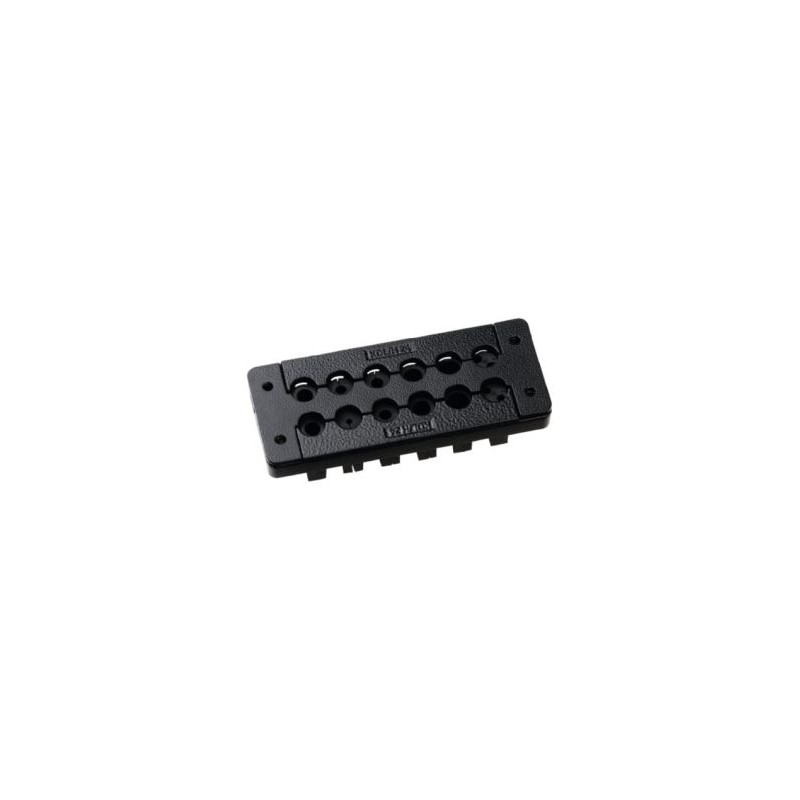

KDL/H M50/4 87141424 MURRPLASTIK Cable entry systems and holders Type KDL/H cable entry system special size Blac View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDL/H M50/4 87141424 MURRPLASTIK Cable entry systems and holders Type KDL/H cable entry system special size Blac

87141424

MURRPLASTIK

Cable entry systems and holders Type KDL/H cable entry system special size Black

KDL/H M50/4, negro, Set

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total: $113.22
Unit price: $113.22
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


KDL/H is manufactured in a zinc die-cast process and is designed for feed-through of pre-assembled cables. The KDL/D system is a splittable system that enables the quick and easy installation of up to 48 pre-assembled cables with a high packing density in control cabinets and terminal boxes.

Special benefits of the KDL/H are:

Cable infeed without interruption

Standardised cut-out dimensions

Easy assembly

High protection category to IP 69K (in combination with the proper enclosure)

Very robust construction

Integrated strain relief

Matching grommet: KDT/X

KDL/H M50/4: Cut-out 50.5 mm (round)

Labs free

UV-resistant

-30°C – 100°C

ZNTPEAluminium

IP 66/67

Type Order No. Colour No. Openings Small / medium / large Pack qty. Installation height (EH) mm A mm B mm a mm b mm c mm d mm e mm

For standard cut-out size 24

KDL/H 24/12 87141410 Black 12 / 0 / 0 1 18 148 58 112 36 65 16 5.5
KDL/H 24/4 87141412 Black 0 / 4 / 0 1 18 148 58 112 36 65 16 5.5
KDL/H 24/3 87141414 Black 0 / 1 / 2 1 18 148 58 112 36 65 16 5.5

For standard cut-out size 16

KDL/H 16/8 87141418 Black 8 / 0 / 0 1 18 121 58 86 36 51.5 16 5.5
KDL/H 16/3 87141416 Black 0 / 3 / 0 1 18 121 58 86 36 51.5 16 5.5
KDL/H 16/2 87141420 Black 0 / 0 / 2 1 18 121 58 86 36 51.5 16 5.5

special size

KDL/H 1/6 87141422 Black 6 / 0 / 0 1 18 148 38 112 17 65 16 5.5
KDL/H M50/4 87141424 Black 4 / 0 / 0 1 18 62 62 23 23 5.5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
