87841060 MURRPLASTIK Cable entry systems and holders Discharge plate type AB-Clip 24 EMC
87841060
MURRPLASTIK
2
Cable entry systems and holders Discharge plate type AB-Clip 24 - EMC
AB-Clip 24-EMV
Discharge bracket type AB
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

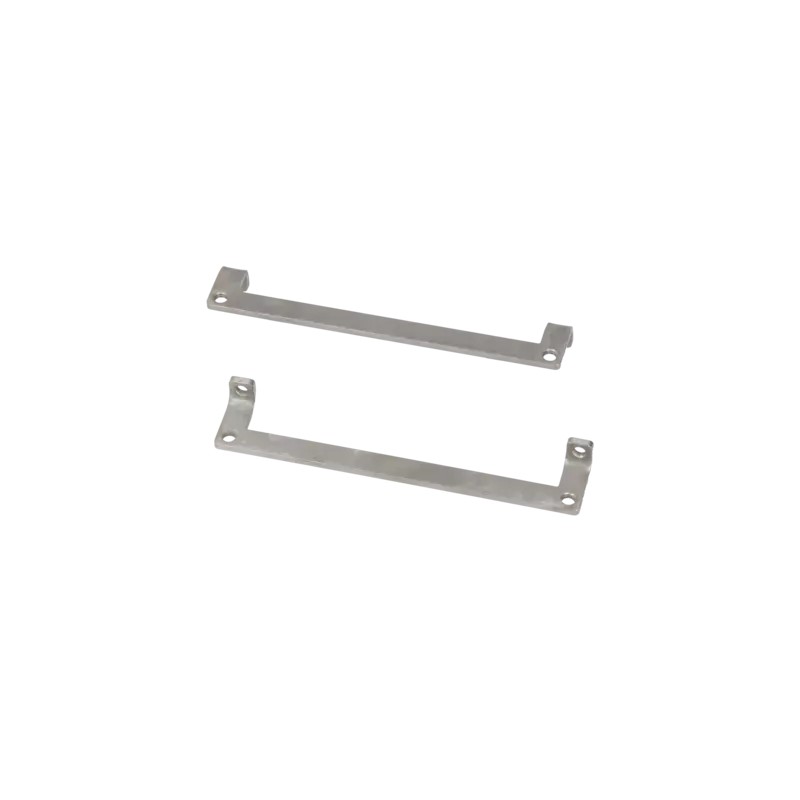

▲The discharge plate AB-Clip 24 - EMV is made of 1.4301 (V2A) stainless steel. It can be used in conjunction with 24-pin cable entry system (KDL/x) and cable entry plates (KDP/x) to eliminate interference that can occur on the cable shields. The discharge plate should be installed on the inside of the control cabinet, directly to the fixing points of the cable entry system. The deflector plate accommodates the EMC clip systems, which can be mounted on a 10x3mm busbar. The special advantages of the AB-Clip 24 - EMV discharge plate are:
High stability
Easy installation of the screen clip systems
Compact design
RoHS compliant
Stainless steel 1.4310
| Type | Order No. | MOQ qty. | ||
|---|---|---|---|---|
| AB-Clip 24-EMV | 87841060 | 2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87841060 87841060 EN_87841060.pdf | 316 Kbytes |
|
