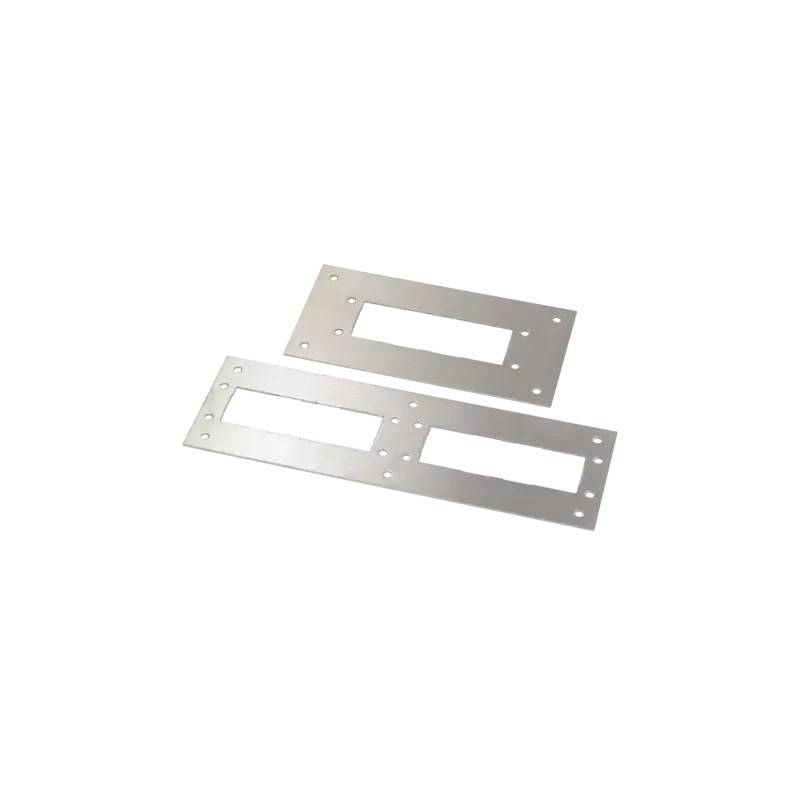

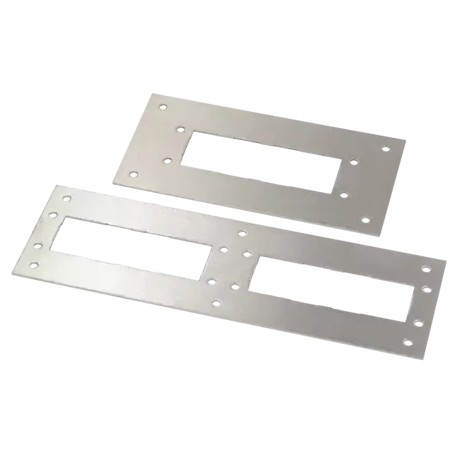

87663077 MURRPLASTIK Cable entry systems and holders Adapter plate Lohmeier With 24-pin cut-outs
87663077
MURRPLASTIK
Cable entry systems and holders Adapter plate Lohmeier With 24-pin cut-outs
KDP 24/AP/LO-BG/2
Adapter plate Lohmeier
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The Lohmeier adapter plates can be directly mounted into the prefabricated cut-outs from Lohmeier casings. They serve to retain various Murrplastik cable entry systems. Unused adapter spaces can be closed off using blanking plates. A blade terminal L6.3 is available for earthing the adapter plate. Adapter plate come with seal included.
Stainless steel 1.4301(V2A)
GL approval
| Type | Order No. | Colour | Holder slots | Cut-out | Plate thickness mm | A mm | B mm | MOQ qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
with 24-pin cut-outs | ||||||||||||
| KDP 24/AP/LO-BG/1 | 87663078 | Smoothed |
| F200 type BG | 2 | 194 | 92 | 1 | ||||
| KDP 24/AP/LO-BG/2 | 87663077 | Smoothed |
| F300 type BG | 2 | 294 | 92 | 1 | ||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87663077 87663077 EN_87663077.pdf | 359 Kbytes |
|
