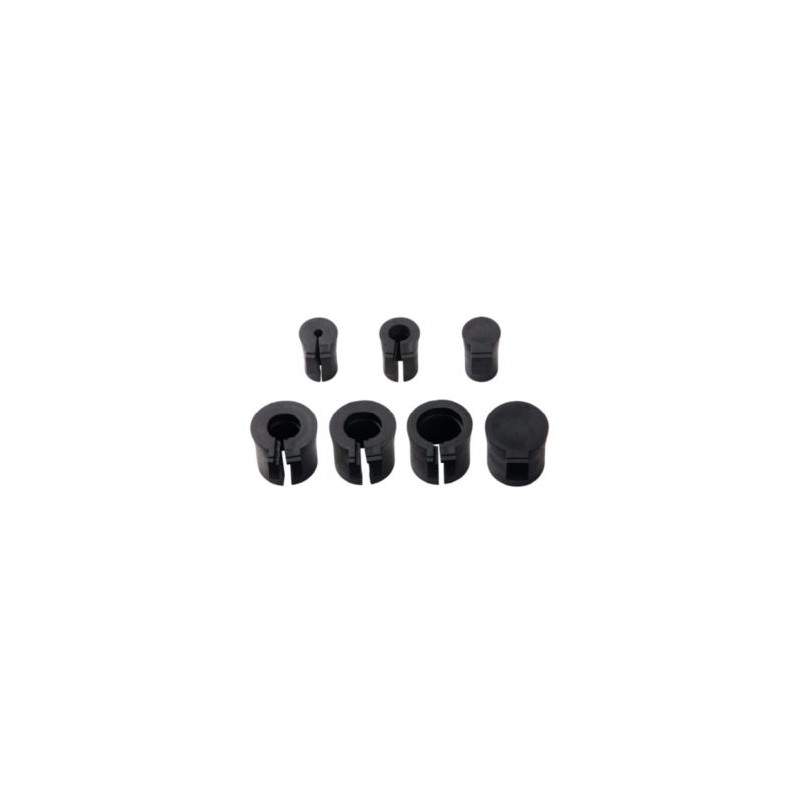

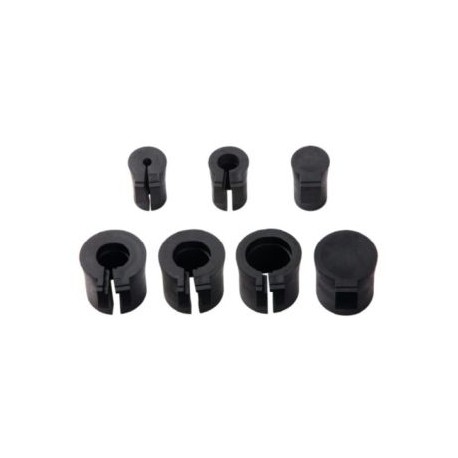

87141354 MURRPLASTIK Cable entry systems and holders Type KDT/X-EN cable entry grommet Grommet, large
87141354
MURRPLASTIK
4
Cable entry systems and holders Type KDT/X-EN cable entry grommet Grommet, large
KDT/X-EN 24, 24-25
Type KDT/X-EN cable entry grommet
Wall plates and cable glands
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲For example, in conjunction with the KDL/D-EN and KDL/H-EN cable entry systems, the KDT/X-EN cable entry grommets can be used to easily route pre-assembled cables into and through control cabinets. The grommet is 1-piece and is subsequently positioned around the cable.
Approved for railway technology (EN 45545-2 / 3x HL3)
Labs free
-30°C – 100°C
TPE
V0
EU railway approval
| Type | Order No. | Colour | for Ø mm | For opening Small / medium / large | No. of openings | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|
Grommet, small | ||||||||
| KDT/X-EN 02 | 87141310 | Black | – 2 – 3 | yes / / no | 1 | 12 | ||
| KDT/X-EN 03 | 87141312 | Black | – 3 – 4 | yes / / no | 1 | 12 | ||
| KDT/X-EN 04 | 87141314 | Black | – 4 – 5 | yes / / no | 1 | 12 | ||
| KDT/X-EN 05 | 87141316 | Black | – 5 – 6 | yes / / no | 1 | 12 | ||
| KDT/X-EN 06 | 87141318 | Black | – 6 – 7 | yes / / no | 1 | 12 | ||
| KDT/X-EN 07 | 87141320 | Black | – 7 – 8 | yes / / no | 1 | 12 | ||
| KDT/X-EN 08 | 87141322 | Black | – 8 – 9 | yes / / no | 1 | 12 | ||
| KDT/X-EN 09 | 87141324 | Black | – 9 – 10 | yes / / no | 1 | 12 | ||
| KDT/X-EN 10 | 87141326 | Black | – 10 – 11 | yes / / no | 1 | 12 | ||
| KDT/X-EN 11 | 87141328 | Black | – 11 – 12 | yes / / no | 1 | 12 | ||
| BTK/X-EN (dummy grommet) | 87141370 | Black | yes / no / no | 12 | ||||
Grommet, large | ||||||||
| KDT/X-EN 12 | 87141330 | Black | – 12 – 13 | no / yes / no | 1 | 4 | ||
| KDT/X-EN 13 | 87141332 | Black | – 13 – 14 | no / yes / no | 1 | 4 | ||
| KDT/X-EN 14 | 87141334 | Black | – 14 – 15 | no / yes / no | 1 | 4 | ||
| KDT/X-EN 15 | 87141336 | Black | – 15 – 16 | no / yes / no | 1 | 4 | ||
| KDT/X-EN 16 | 87141338 | Black | – 16 – 17 | no / yes / no | 1 | 4 | ||
| KDT/X-EN 17 | 87141340 | Black | – 17 – 18 | no / yes / no | 1 | 4 | ||
| KDT/X-EN 18 | 87141342 | Black | – 18 – 19 | no / yes / no | 1 | 4 | ||
| KDT/X-EN 19 | 87141344 | Black | – 19 – 20 | no / yes / no | 1 | 4 | ||
| KDT/X-EN 20 | 87141346 | Black | – 20 – 21 | no / yes / no | 1 | 4 | ||
| KDT/X-EN 21 | 87141348 | Black | – 21 – 22 | no / yes / no | 1 | 4 | ||
| KDT/X-EN 22 | 87141350 | Black | – 22 – 23 | no / no / yes | 1 | 4 | ||
| KDT/X-EN 23 | 87141352 | Black | – 23 – 24 | no / no / yes | 1 | 4 | ||
| KDT/X-EN 24 | 87141354 | Black | – 24 – 25 | no / no / yes | 1 | 4 | ||
| KDT/X-EN 25 | 87141356 | Black | – 25 – 26 | no / no / yes | 1 | 4 | ||
| KDT/X-EN 26 | 87141358 | Black | – 26 – 27 | no / no / yes | 1 | 4 | ||
| KDT/X-EN 27 | 87141360 | Black | – 27 – 30 | no / no / yes | 1 | 4 | ||
| KDT/X-EN 28 | 87141362 | Black | – 28 – 29 | no / no / yes | 1 | 4 | ||
| KDT/X-EN 29 | 87141364 | Black | – 29 – 30 | no / no / yes | 1 | 4 | ||
| BTG/X-EN dummy grommet | 87141366 | Black | no / yes / no | 4 | ||||
Multi-line grommet 4-line | ||||||||
| KDT/X-EN 4x4 | 87141394 | Black | yes / no / no | 12 | ||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87141354 87141354 EN_87141350.pdf | 785 Kbytes |
|
