> MURRELEKTRONIK>Transformers>86183 MURRELEKTRONIK MTS single-phase control and isolation transformer P: 100VA IN: 208...550VAC OUT: 24VAC
Previous Product Next Product

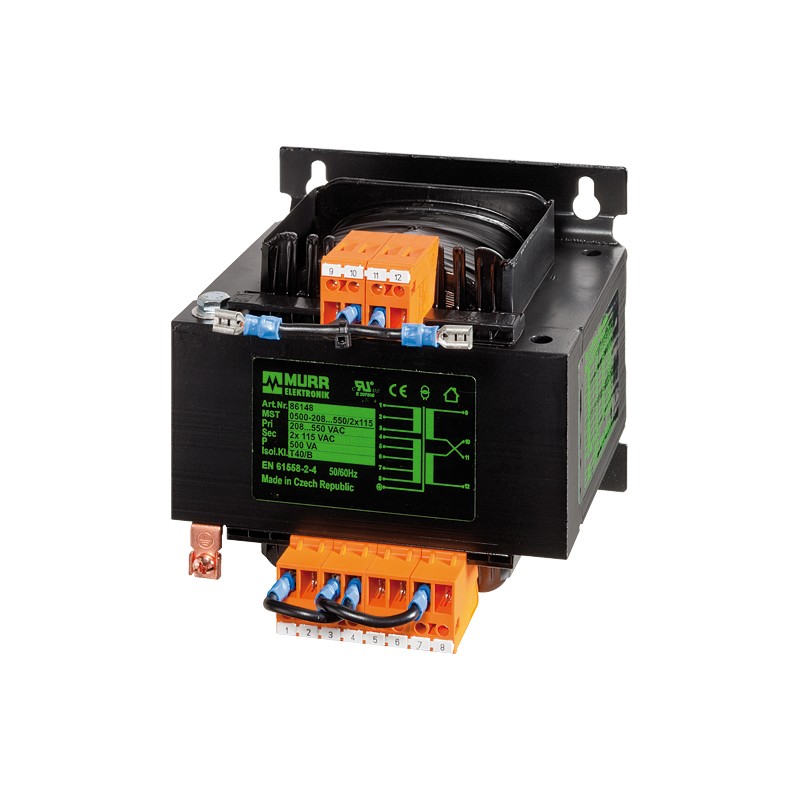

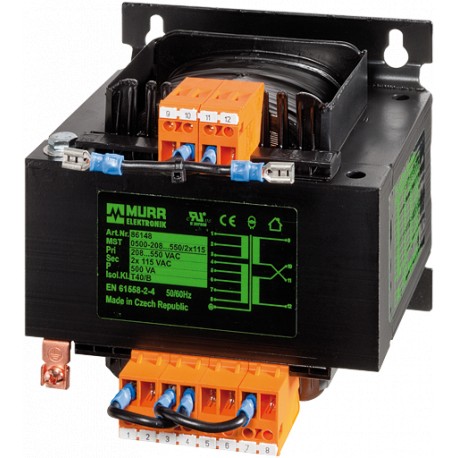

86183 MURRELEKTRONIK MTS single-phase control and isolation transformer P: 100VA IN: 208...550VAC OUT: 24VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

86183 MURRELEKTRONIK MTS single-phase control and isolation transformer P: 100VA IN: 208...550VAC OUT: 24VAC

86183

MURRELEKTRONIK

MTS single-phase control and isolation transformer P: 100VA IN: 208...550VAC OUT: 24VAC

MTS 1-PHASE CONTROL AND ISOLATION TRANSFORMER P: 100VA IN: 208...550VAC OUT: 24VAC

MTS 1-PHASE CONTROL AND ISOLATION TRANSFORMER

More details


Transformers

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

Total price: $110.96
Unit price: $110.96

Quantity Price
1+$110.96
2+$100.92
3+$92.52
4+$87.77
5+$85.07
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Single-phase - Control and Isolation Transformers
100 VA
Isolation class T 40/B
Other voltages on request.
General data
StandardsEN 61558-1, EN 61558-2-6, EN 62041 category 0
Test isolation voltage6.3 kV (prim./sec.)
Mounting methodKey-hole mounting
Dimensions H×W×D88×84×93 mm
Fixing centers a×b×c64.5×64×4.8 mm
Drill hole Ø4.8×8.4 mm
Temperature range-20...+40 °C (storage temperature -40...+80 °C)
Output
Output voltage24 V AC
Output rating100 VA
Input
Input voltage208, 230, 380, 400, 420, 440, 460, 480, 500, 525, 550 V AC
Input current0.57 A (208 V AC); 0.21 A (550 V AC)
Inrush current9.7 A (208 V AC); 3.7 A (550 V AC)
Short-circuit current7.6 A (208 V AC); 2.9 A (550 V AC)
Frequency50...60 Hz
Commercial data
country of originCZ
customs tariff number85043180
EAN4048879372367
eClass27031302
Packaging unit1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRELEKTRONIK EN.pdf 19 Mbytes
86183 86183 EN_86183.pdf 155 Kbytes 86183 86183 EN_86183.pdf
Download general catalog Download general catalog
