> MURRELEKTRONIK>Power supplies>85161 MURRELEKTRONIK MCS-B power supply 1-phase IN: 90-265VAC OUT: 24V/1,3ADC
Previous Product Next Product

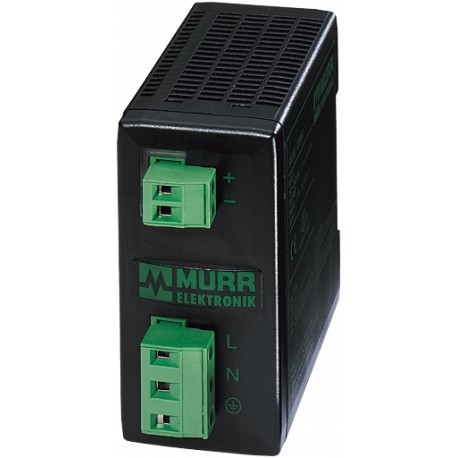

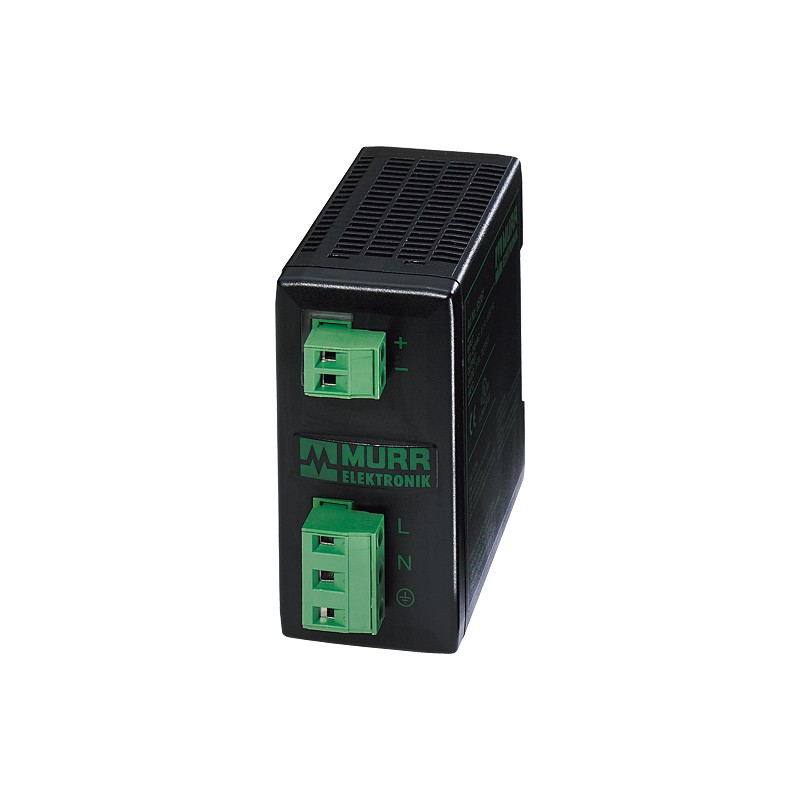

85161 MURRELEKTRONIK MCS-B power supply 1-phase IN: 90-265VAC OUT: 24V/1,3ADC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

85161 MURRELEKTRONIK MCS-B power supply 1-phase IN: 90-265VAC OUT: 24V/1,3ADC

85161

MURRELEKTRONIK

Available Ship on today

MCS-B power supply 1-phase IN: 90-265VAC OUT: 24V/1,3ADC

MCS-B POWER SUPPLY 1-PHASE, IN: 90-265VAC OUT: 24V/1,3ADC

More details


Power supplies

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

Total price: $134.40
Unit price: $134.40

Quantity Price
1+$134.40
3+$119.39
6+$108.58
8+$105.34
11+$103.04
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


IN: 90-265VAC OUT: 24V/1,3ADC
Art.No.: 85161
Weight: 0.199 kg
Ask question
Recommend Product
INPUT: 90...265 V AC
OUTPUT: 24 V DC +3/-1%
Current: 1.3 A
Input
Input voltage90...265 V AC; 110...300 V DC
Input current0.65 A (100 V AC); 0.37 A (230 V AC)
Inrush current after 1 msmax. 20 A
Primary fusing externalmax. 10 A
Frequency50...60 Hz
General data
StandardsEN 60950-1, EN 61204-3, EN 55022 B, EN 61000-3-2
Relative humidity5...95%, no condensation
Efficiency82%
Dimensions H × W × D76×38×87.5 mm
Mounting methodDIN-rail mountable TH35 (EN 60715)
Temperature range-25...+40 °C, ...+50 °C derating (storage temperature -25...+85 °C)
Output
Output voltage24 V DC (SELV), ±1%; 22...28 V adjustable
Output current1.3 A (+60 °C, Uin min.170 V AC)
Mains failure bridging timemin. 15 ms (100 V AC); min. 100 ms (230 V AC)
Ripplemax. 50 mV eff/rms
Spikesmax. 120 mV ss/pp
Unit protectionShort-circuit and overload protected
LED displayLED (green) for output voltage
Parallel usage/serial usagemax. 5 units/max. 2 units
Commercial data
country of originCZ
customs tariff number85044090
EAN4048879080385
eClass27049002
Packaging unit1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRELEKTRONIK EN.pdf 19 Mbytes
85161 85161 85161_Data_Sheet_1.pdf 106 Kbytes 85161 85161 85161_Data_Sheet_1.pdf
Download general catalog Download general catalog
