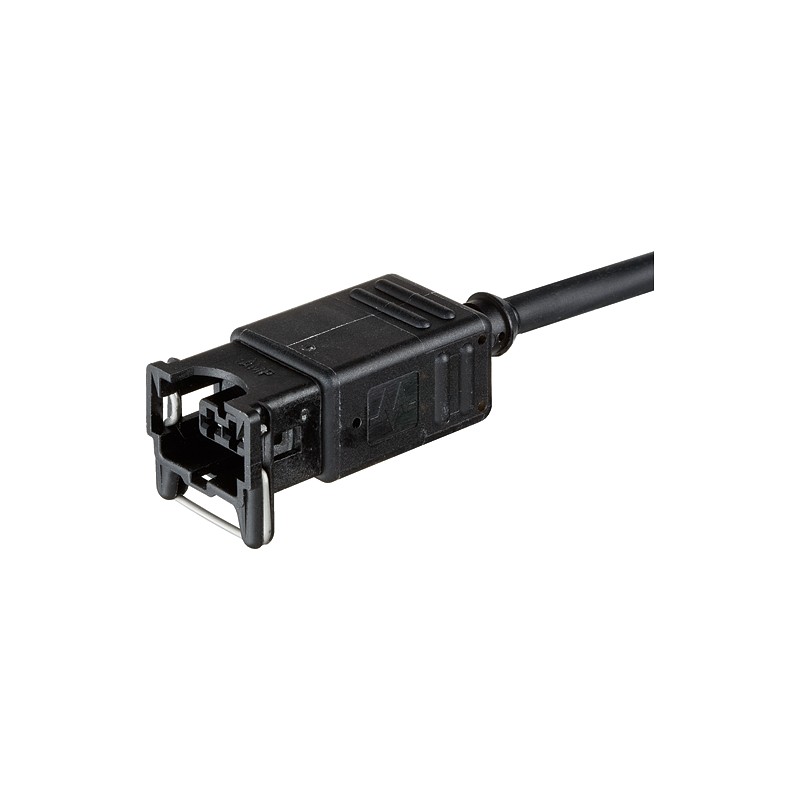

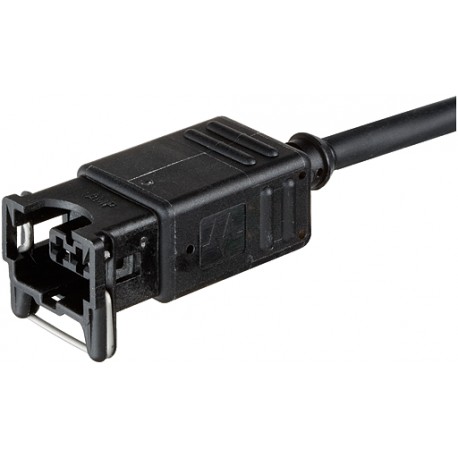

7080-70001-R011000 MURRELEKTRONIK Junior Timer valve plug 0° with cable Polyolefin 2x0.75 shielded black 10m
7080-70001-R011000
MURRELEKTRONIK
Junior Timer valve plug 0° with cable Polyolefin 2x0.75 shielded black 10m
Valve plug MJC 0° with cableRADOX EM 104 2x0.5 bk 10m
Junior Timer valve 0° with cable
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲2-pole
max. 230 V AC/DC
without components
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Form | 70001 |
|---|
| Operating voltage | max. 230 V AC/DC |
|---|---|
| Rated surge voltage | 4.0 kV |
| Operating current per contact | max. 4 A |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Housing | Black plastic, flame retardant |
| Pollution Degree | 3 |
|---|---|
| Stripping length (jacket) | 50 mm |
| Cable identification | R01 |
|---|---|
| Approval (cable) | DIN EN 45545-2, CE conform |
| Cable weight [g/m] | 36,30 |
| Material (wire) | Cu wire, tin plated |
| Resistor (core) | max. 40.1 Ω/km (20 °C) |
| Single wire Ø (core) | 0.18 mm |
| Construction (core) | 19× 0.18 mm |
| Diameter (core) | 2× 0.5 mm² |
| AWG | similar to AWG 20 |
| Material (wire isolation) | Radox EI 303 |
| Wire-Ø incl. isolation | 1.42 mm ±5% |
| Color/numbering of wires | wh (bk num) |
| Stranding combination | 2 wires twisted |
| Shield | no |
| Material (jacket) | Radox EM 104 |
| Outer-Ø (jacket) | 4.4 mm ±5% |
| Color (jacket) | black |
| Nominal voltage | 600/1000 V AC |
| Test voltage | 3500 V AC |
| Current load capacity | according to DIN VDE 0298-4 |
| Temperature range (fixed) | -50...+120 °C |
| Temperature range (mobile) | -25...+90 °C |
| Bend radius (fixed) | 3× outer-Ø |
| Bend radius (moving) | 4× outer-Ø |
| Jacket Color | black |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879673112 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7080-70001-R011000 7080-70001-R011000 EN_7080-70001-R011000.pdf | 221 Kbytes |
|
