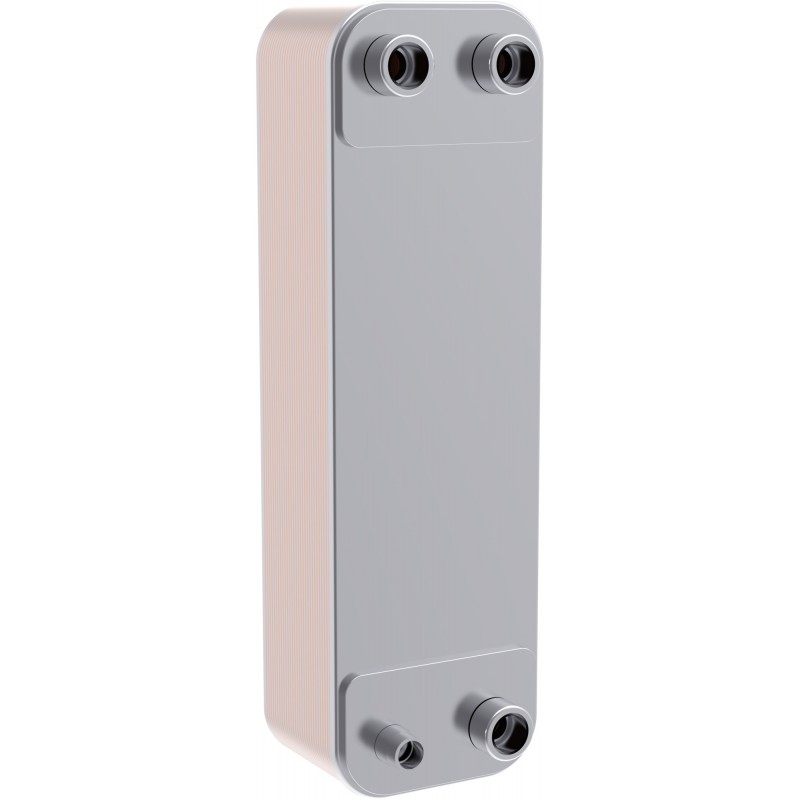

111G1855 DANFOSS REFRIGERATION Micro Plate heat exchanger H62-EZU-50 (BOS) PN30/16
111G1855
DANFOSS REFRIGERATION
Micro Plate heat exchanger H62-EZU-50 (BOS) PN30/16
Micro Plate heat exchanger, MPHE C118L-EZ
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: Evaporator, Max working pressure [psi]: 653, Number of plates: 46, Brazing material: Copper brazing
Product details
| Gross weight | 28 Kg |
| Net weight | 21.3 Kg |
| Volume | 137.6 Liter |
| EAN | 5714279002959 |
| Gross weight | 28 Kg |
| Net weight | 21.3 Kg |
| Volume | 137.6 Liter |
| EAN | 5714279002959 |
| Application | Chiller |
| Approval | AS EAC KRAIA PED UA UL CRN RoHS UKCA |
| Brazing material | Copper brazing |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| EU RoHS compliance | Yes |
| Function | Evaporator |
| Function note | With distributor |
| In scope of WEEE and contain batteries | No |
| Max working pressure [psi] | 653 psi |
| Max. Working Pressure [bar] | 45 bar |
| Model No. | 118 |
| Number of plates | 46 |
| Packing format | Single pack |
| Plate material no. | AISI 316L |
| Plate material no. | AISI 316L |
| Plate pattern | Z |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Q1 conn. size range | G2 |
| Q1 conn. type | G External thread connection |
| Q2 conn. size range | G2 |
| Q2 conn. type | G External thread connection |
| Q3 conn. size range | 5/8 in |
| Q3 conn. type | Solder connection |
| Q4 conn. size range | 1"1/8 in |
| Q4 conn. type | Solder connection |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R11 R113 R114 R12 R123 R1233zd(E) R1234yf R1234ze R124 R134a R152a R22 R227ea R245fa R290 R401A R402A R402B R404A R407A R407B R407C R407F R408A R409A R410A R412A R413A R417A R422D R444B R448A R449A R450A R452A R452B R454B R454C R455A R500 R502 R507A R513A R515B R600a R508B |
| Type | MPHE C118L-EZ |
| Type designation | C118L-EZ |
| Application | Chiller |
| Approval | AS EAC KRAIA PED UA UL CRN RoHS UKCA |
| Brazing material | Copper brazing |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| EU RoHS compliance | Yes |
| Function | Evaporator |
| Function note | With distributor |
| In scope of WEEE and contain batteries | No |
| Max working pressure [psi] | 653 psi |
| Max. Working Pressure [bar] | 45 bar |
| Model No. | 118 |
| Number of plates | 46 |
| Packing format | Single pack |
| Plate material no. | AISI 316L |
| Plate material no. | AISI 316L |
| Plate pattern | Z |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Q1 conn. size range | G2 |
| Q1 conn. type | G External thread connection |
| Q2 conn. size range | G2 |
| Q2 conn. type | G External thread connection |
| Q3 conn. size range | 5/8 in |
| Q3 conn. type | Solder connection |
| Q4 conn. size range | 1"1/8 in |
| Q4 conn. type | Solder connection |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R11 R113 R114 R12 R123 R1233zd(E) R1234yf R1234ze R124 R134a R152a R22 R227ea R245fa R290 R401A R402A R402B R404A R407A R407B R407C R407F R408A R409A R410A R412A R413A R417A R422D R444B R448A R449A R450A R452A R452B R454B R454C R455A R500 R502 R507A R513A R515B R600a R508B |
| Type | MPHE C118L-EZ |
| Type designation | C118L-EZ |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 111G1855 111G1855 ES_111B1802.pdf | 273 Kbytes |
 |
