7000-PS202-8212250
MURRELEKTRONIK
1

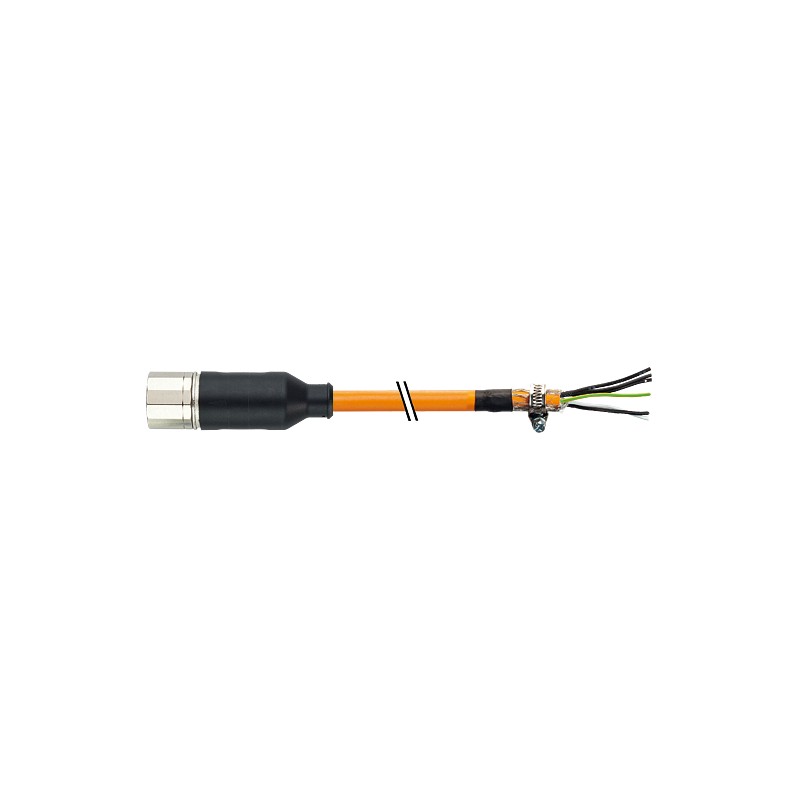

M23 Servo cable specification: 6FX8002-5DG01-1CC5
M23 SERVO CABLE specification: 6FX8002-5DG01-1CC5
M23 SERVO CABLE
Connectors
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Form | PS202 |
---|
Operating voltage | 600 V AC/DC (PIN 1/2/3/6); 250 V AC/DC (PIN 4/5) |
---|---|
Rated surge voltage | 4 kV (PIN 1/2/3/6); 2 kV (PIN 4/5) |
Operating current per contact | Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²) |
Material group | IEC 60664-1, category I |
Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
Compression gland | M23 (SW27) |
Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
Locking material | Brass, nickel plated |
Material | PUR |
suitable for corrugated tube (internal Ø) | 16 mm |
Pollution Degree | 3 |
---|---|
Temperature range | -25...+85 °C, depending on cable quality |
Cable number | 821 |
---|---|
No./diameter of wires | (4G1.5 + (2× 1.5)C)-C |
Wire isolation | TPM (bk num, gnye) |
C-track properties | 10 Mio. |
Torsion stress | ±30°/m |
Jacket Color | orange |
Material (jacket) | PUR (UL/CSA) (=MC800+) |
Specification | 6FX8008-1BA11 |
Outer Ø | 11.6 mm ±5% |
Bend radius (fixed) | 5× outer Ø |
Bend radius (moving) | 7.5× outer Ø |
Temperature range (fixed) | -50...+80 °C |
Temperature range (mobile) | -35...+70 °C |
Shield | yes |
Approval (cable) | cURus (AWM-Style 21223/10492) |
Diameter (core) | 4× 2.5 + 2× 1.5 mm² |
country of origin | DE |
---|---|
customs tariff number | 85444290 |
EAN | 4048879684408 |
eClass | 27279218 |
Packaging unit | 1 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes | |
7000-PS202-8212250 7000-PS202-8212250 EN_7000-PS202-8212250.pdf | 104 Kbytes | |
