7000-C0201-7090000 MURRELEKTRONIK Cable drum Ø 355MM PUR 3x0.25 shielded black 100m
7000-C0201-7090000
MURRELEKTRONIK
Cable drum Ø 355MM PUR 3x0.25 shielded black 100m
Connectors
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-C0201-7090000 |
| Weight: | 5.402 kg |
PUR

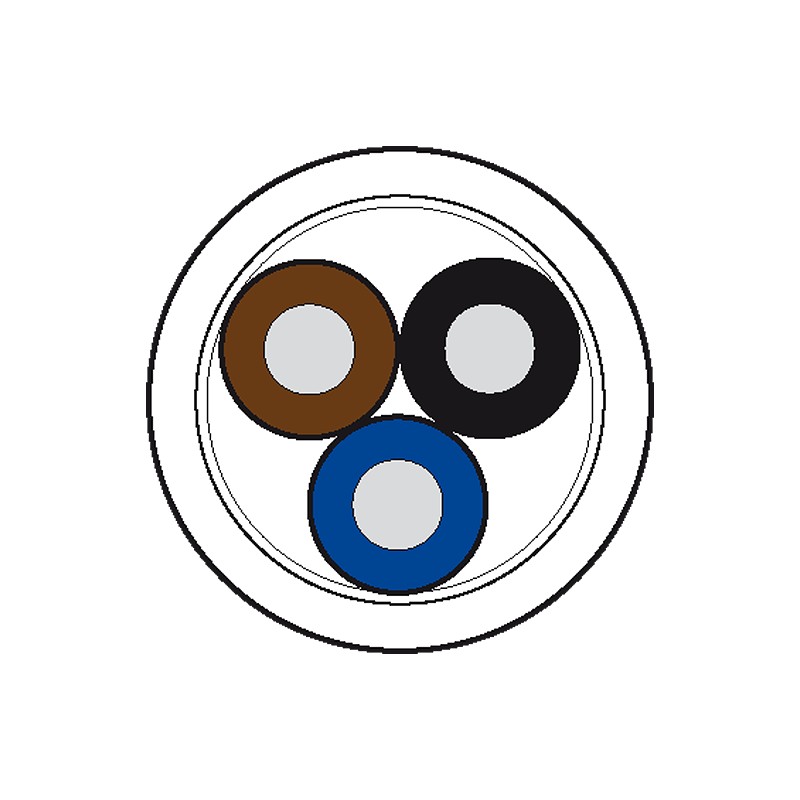

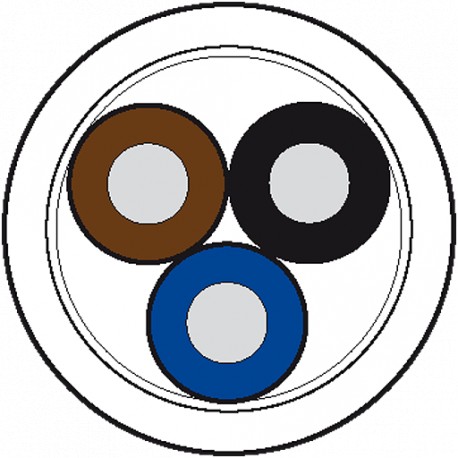

3 × 0.25 mm², black
| Cable identification | 709 |
|---|---|
| Approval (cable) | CE conform |
| Cable weight [g/m] | 46,20 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 76 Ω/km (20 °C) |
| Single wire Ø (core) | 0.1 mm |
| Construction (core) | 32 × 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 3 × 0.25 mm² |
| AWG | similar to AWG 24 |
| Material (wire isolation) | PVC |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 85 ±5 A |
| Wire-Ø incl. isolation | 1.25 mm ±5% |
| Color/numbering of wires | br, bk, bl |
| Stranding combination | 3 wires twisted |
| Shield | yes |
| Material (jacket) | PUR |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Shore hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 4.8 mm ±5% |
| Color (jacket) | black |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 300/350 V AC |
| Test voltage | 1 500 V AC |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+70 °C |
| Bend radius (moving) | 15 × outer Ø |
| Jacket Color | black |
| country of origin | DE |
|---|---|
| customs tariff number | 85444995 |
| EAN | 4048879496940 |
| eClass | 27062011 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-C0201-7090000 7000-C0201-7090000 7000-C0201-7090000_Data_Sheet_1.pdf | 103 Kbytes |
|
| Download general catalog |
|
