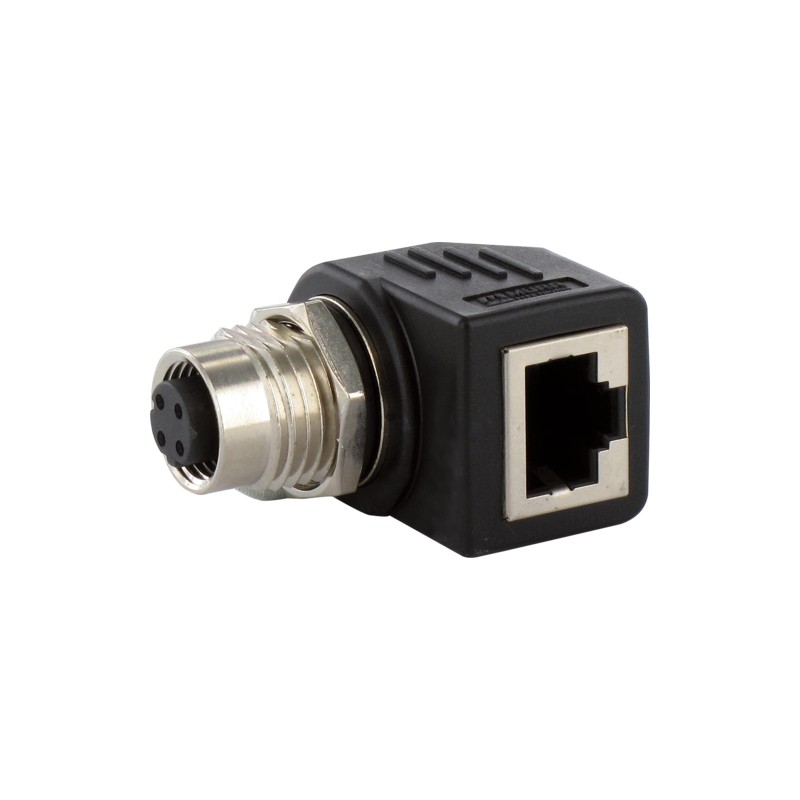

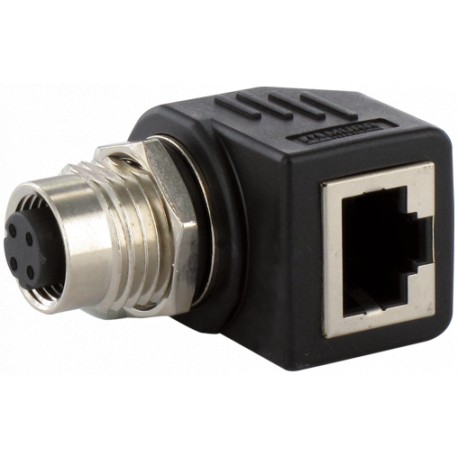

7000-44681-0000000 MURRELEKTRONIK M12 female D-coded / RJ45 Ethernet adapter 90° 4-pol.
7000-44681-0000000
MURRELEKTRONIK
M12 female D-coded / RJ45 Ethernet adapter 90° 4-pol.
M12 Bu. D-cod. / RJ45 Ethernet adapter 90° 4-pol.
Adaptor M12 female / RJ45 90°
Connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Ethernet CAT5
Control cabinet entry system
Female straight – female 90°
M12 – RJ45, 4-pole
D-coded
shielded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Control cabinet entry system
Female straight – female 90°
M12 – RJ45, 4-pole
D-coded
shielded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Form
| Form | 44681 |
|---|
Technical Data
| Operating voltage | max. 60 V DC |
|---|---|
| Operating current per contact | max. 1.76 A |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Coding | M12, D-coded |
| Protection | IP68 (M12) - IP20 (RJ45) |
| Material | PUR |
| Locking material | Brass, chrome plated |
General data
| Temperature range | -25...+85 °C |
|---|---|
| Mounting plate thickness | 2...5 mm |
| Product article number of manufacturer | 7000-44681-0000000 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-44681-0000000 7000-44681-0000000 EN_7000-44681-0000000.pdf | 99 Kbytes |
|
