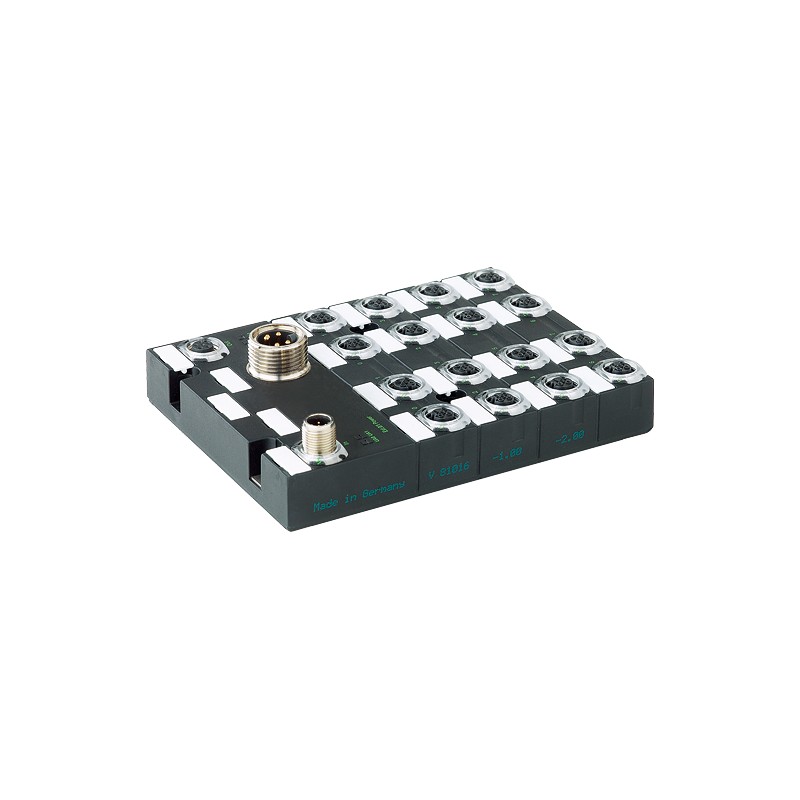

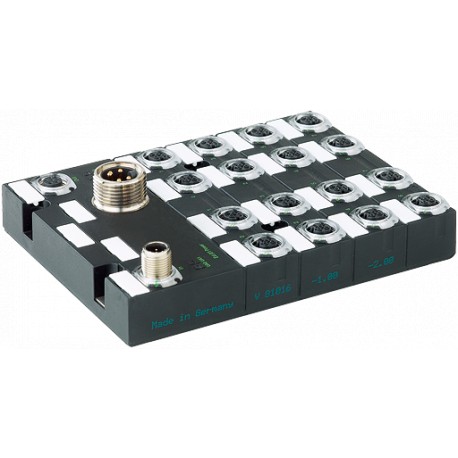

56642 MURRELEKTRONIK CUBE67 I/O EXTENSION MODULE 32 multifunction channels
56642
MURRELEKTRONIK
CUBE67 I/O EXTENSION MODULE 32 multifunction channels
BUS systems
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲32 multifunction channels
| Art.No.: | 56642 |
| Weight: | 0.6 kg |
Expansion module
DIO32 - 0.5 A (E) 16×M12
Digital inputs/outputs (multifunctional)
Connection cables are in the online shop under "Connection Technology". Housing fully potted.
DIO32 - 0.5 A (E) 16×M12
Digital inputs/outputs (multifunctional)
Connection cables are in the online shop under "Connection Technology". Housing fully potted.
Input
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
|---|---|
| Type | for 3-wire sensors or mechanical switches, PNP |
| Input filter | 1 ms |
Internal communication
| Current consumption | max. 60 mA |
|---|---|
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
Connections
| Fieldbus | via internal system connection |
|---|---|
| Sensor-system/actuator supply | via internal system connection (max. 2×4 A) |
| I/O ports | M12 (female) 5-pole, A-coded |
General data
| Protection | IP67 |
|---|---|
| Mounting method | 4 hole screw mounting |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| Dimensions H × W × D | 151.5×115.5×35.5 mm |
Output
| Actuator supply (8×M12 left side) | 24 V DC (EN 61131-2), via 7/8" male (max. 1 × 9 A) |
|---|---|
| Actuator supply (8×M12 right side) | 24 V DC (EN 61131-2), via 7/8" male (max. 1 × 9 A) |
| Switching current per output (8×M12 left) | max. 0.5 A (short-circuit and overload protected) |
| Switching current per output (8×M12 right) | max. 0.5 A (short-circuit and overload protected) |
| Lamp load (8×M12 left) | 10 W |
| Lamp load (8×M12 right) | 10 W |
Parameterization
| PIN 2 (8 × M12 left side) | Input/Output/Diagnostic |
|---|---|
| PIN 4 (8 × M12 left side) | Input/Output |
| PIN 2 (8 × M12 right side) | Input/Output/Diagnostic |
| PIN 4 (8 × M12 right side) | Input/Output |
Diagnostic
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| Actuator warning | per channel via LED and BUS |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879353083 |
| eClass | 27242604 |
| Packaging unit | 1 |
