4000-68122-1400010
MURRELEKTRONIK
1

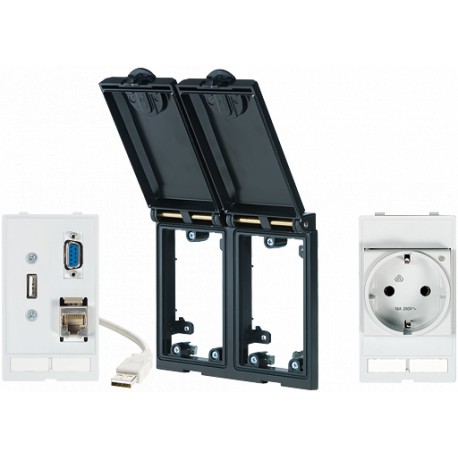

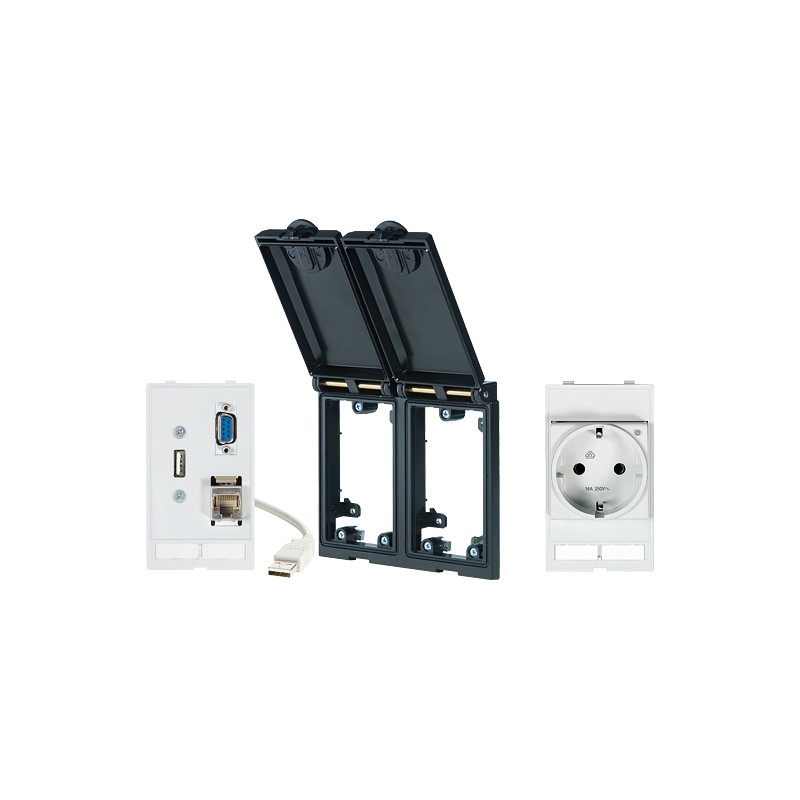

Modlink MSDD set: Frame 4000-68122-0000000, insert 4000-68000-1400000 + 4000-68000-0010000
Interfaces cabinets, beacons and luminaries
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Art.No.: | 4000-68122-1400010 |
Weight: | 0.774 kg |
suitable for mounting with wall thickness | 1...5 mm |
---|---|
Protection | IP65 |
Housing | Zinc die-casting, KTL coated |
Temperature range | -10...+60 °C (storage temperature -25...+60 °C) |
Operating voltage | 48 V AC/DC |
---|---|
Operating voltage (UL Rating) | 42.4 V DC |
Operating current | max. 500 mA |
Locking of ports | Snap In |
Specification | USB: 2.0 (max. 480 Mbit/s) |
Operating voltage | 48 V AC/DC |
---|---|
Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
Operating current | 3 A |
Operating current (UL Rating) | max. 175 mA |
No. of poles | 9-pole |
Connection front side | SUB-D (female) |
Connection rear side | SUB-D (male) |
Locking of ports | UNC 4...40 bolt |
Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
---|---|
Operating current (UL Rating) | max. 175 mA |
Connection front side | RJ45 |
Connection rear side | RJ45 |
Locking of ports | Snap In |
Specification | CAT5e, Class D, 100 MHz, (EN 50173-1) |
Connection | Threaded hole M4 |
---|---|
Tightening torque | 0.9 Nm ±0.1 |
Operating voltage | 250 V AC |
---|---|
Operating current | 16 A |
No. of poles | 2 + PE |
Connection | Screw terminals: max. 2 × 6 mm² (AWG 10) |
LED display | yellow |
country of origin | CZ |
---|---|
customs tariff number | 85389099 |
EAN | 4048879035385 |
eClass | 27189217 |
Packaging unit | 1 |
