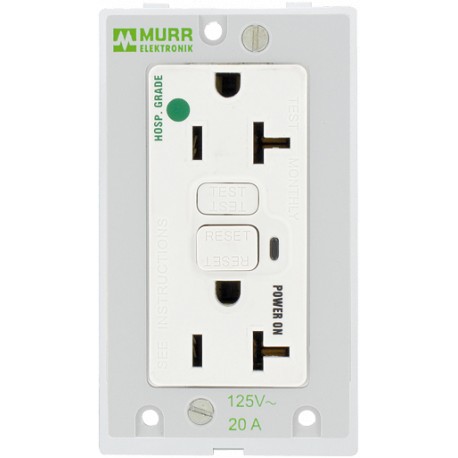

4000-68000-3280000 MURRELEKTRONIK MODLINK MSDD SOCKET INSERT USA NEMA 5-20, GFCI 125VAC/20A
4000-68000-3280000
MURRELEKTRONIK
MODLINK MSDD SOCKET INSERT USA NEMA 5-20, GFCI 125VAC/20A
Interfaces cabinets, beacons and luminaries
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 4000-68000-3280000 |
| Weight: | 0.124 kg |
(Ground Fault Circuit Interrupter)
Screw terminals
Not suitable for installation in frame modules with double-bit, rotation knob or Daimler closure systems 4000-68512-000000X; 4000-68513-000000X; 4000-68514-000000X; 4000-68522-000000X; 4000-68523-000000X; 4000-68524-000000X
| Dimensions H × W × D | 88×51×27 mm |
|---|
| Operating voltage | 125 V AC |
|---|---|
| Operating current | 20 A |
| No. of poles | 2 + PE |
| Connection | Screw terminals: max. 2 × 6 mm² (AWG 10) |
| LED display | red |
| country of origin | CN |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879037259 |
| eClass | 27189217 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 4000-68000-3280000 4000-68000-3280000 4000-68000-3280000_Data_Sheet_1.pdf | 71 Kbytes |
|
