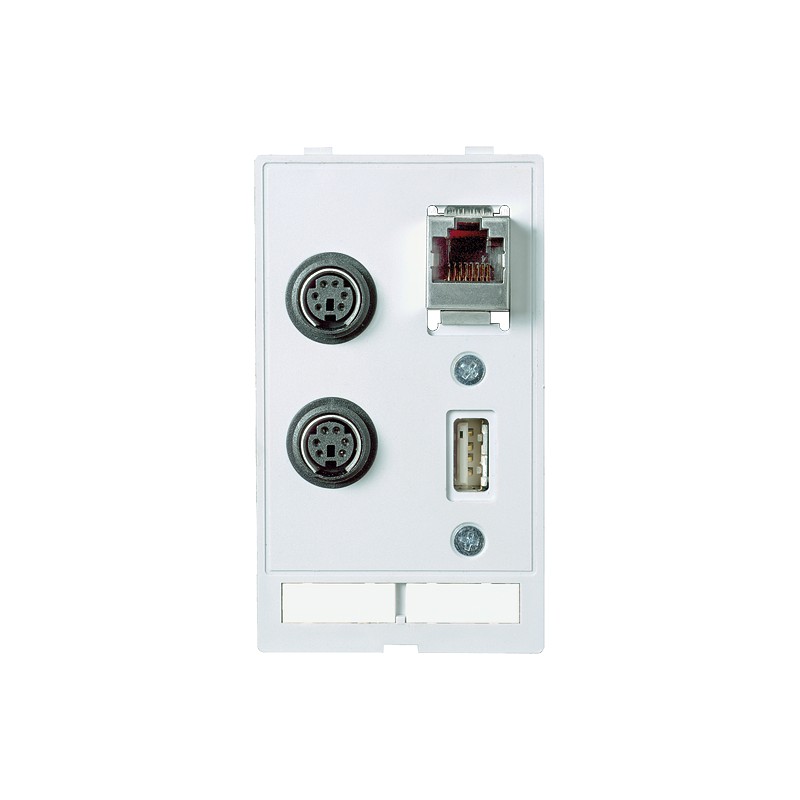

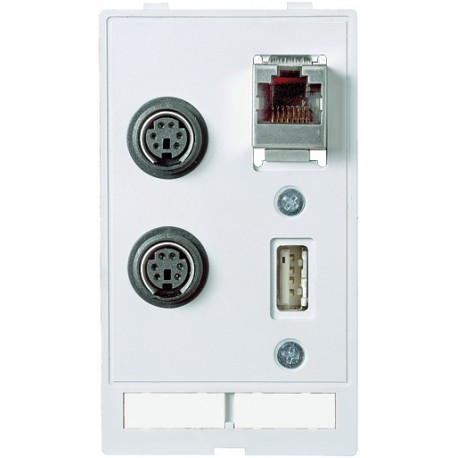

4000-68000-1530000 MURRELEKTRONIK MODLINK MSDD DATA INSERT, 1×USB-A Buchse/Buchse + 1xRJ45 + 2×PS2 Buchse/so..
4000-68000-1530000
MURRELEKTRONIK
MODLINK MSDD DATA INSERT, 1×USB-A Buchse/Buchse + 1xRJ45 + 2×PS2 Buchse/soldering
MODLINK MSDD DATA INSERT1×USB-A fem./fem. + 1xRJ45 + 2×PS2 fem./sold.
Interfaces cabinets, beacons and luminaries
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 4000-68000-1530000 |
| Weight: | 0.08 kg |
1 × RJ45, 8-pole metal, CAT5e (female/female)
1 × USB (female/female) form A
2 × PS2 (6-pole solder connection)
| Dimensions H × W × D | 88×51×70.4 mm |
|---|
| Operating voltage | 48 V AC/DC |
|---|---|
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
| Operating current | 1.5 A |
| Locking of ports | Snap In |
| Specification | USB: 3.0 (max. 5 Gbit/s) |
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
|---|---|
| Operating current (UL Rating) | max. 175 mA |
| Connection front side | RJ45 |
| Connection rear side | RJ45 |
| Locking of ports | Snap In |
| Specification | CAT5e, Class D, 100 MHz, (EN 50173-1) |
| Operating voltage | 30 V AC/DC |
|---|---|
| Operating current | 1 A |
| No. of poles | 6-pole |
| Connection cross section | max. 0.5 mm² (AWG 20) |
| Connection front side | PS2 (female) |
| Connection rear side | PS2 (solder connection) |
| Locking of ports | Screw locking |
| Connection | Threaded hole M4 |
|---|---|
| Tightening torque | 0.9 Nm ±0.1 |
| country of origin | DE |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879037457 |
| eClass | 27189217 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 4000-68000-1530000 4000-68000-1530000 4000-68000-1530000_Data_Sheet_1.pdf | 79 Kbytes |
|
