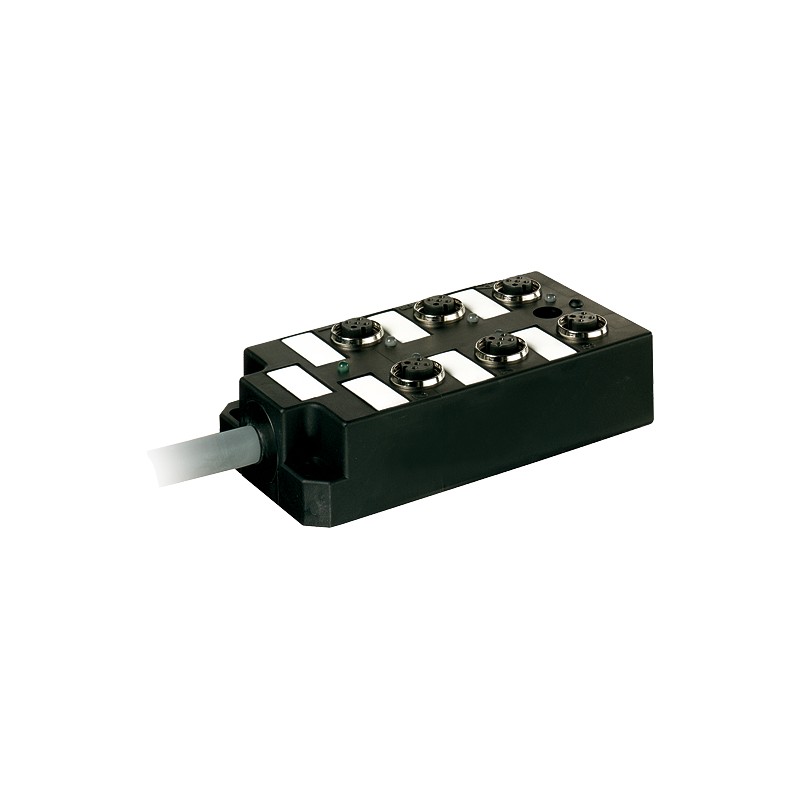

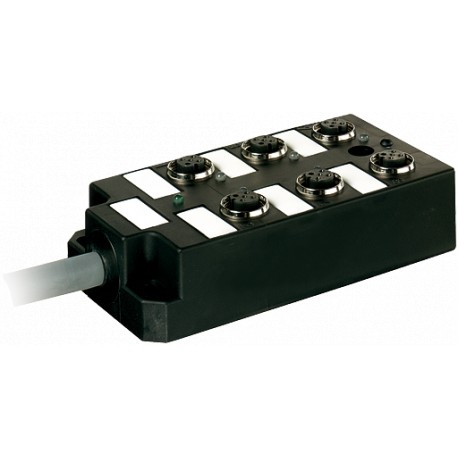

27842 MURRELEKTRONIK PASSIVE-DI0° plastic, 6XM12, 5 pole, pre-wired cable 3.0m PUR-JB 12*0,34 + 3*0,75
27842
MURRELEKTRONIK
PASSIVE-DI0° plastic, 6XM12, 5 pole, pre-wired cable 3.0m PUR-JB 12*0,34 + 3*0,75
PASSIVE-DI0° PLASTIC,6XM12,5POL,PRE-WIRED CABLE3.0m PUR-JB 12*0,34+3*0,75
Passive distribution systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 27842 |
| Weight: | 0.7 kg |
PUR/PVC
3.0 m
with LED for digital PNP-signals 24 V DC
Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| PIN 1 | (+) |
|---|---|
| PIN 2 | (NC)/(S2) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| LED display | LED (green): Power / LED (yellow): (S1/S2) |
| Cable number | 388 |
|---|---|
| No./diameter of wires | 12×0.34 + 3×0.75 mm² |
| Wire isolation | PVC (yebr, rd, grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, br, gnye, bl) |
| C-track properties | 2 Mio. |
| Jacket Color | gray |
| Material (jacket) | PUR/PVC |
| Outer Ø | 9.8 mm ±5% |
| Bend radius (fixed) | 10 × outer Ø |
| Bend radius (moving) | 12 × outer Ø |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+70 °C |
| Color (jacket) | gray |
| Operating voltage | 24 V DC |
|---|---|
| Signal per port | 2 |
| Operating current per contact | max. 4 A |
| Total current | max. 10 A |
| Locking of ports | Screw thread M12 × 1 mm |
| Dimensions H × W × D | 100.5×54.5×25 mm |
|---|---|
| Protection | IP67 inserted and tightened (EN 60529) |
| Temperature range | -20...+80 °C |
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879062978 |
| eClass | 27279219 |
| Packaging unit | 1 |
