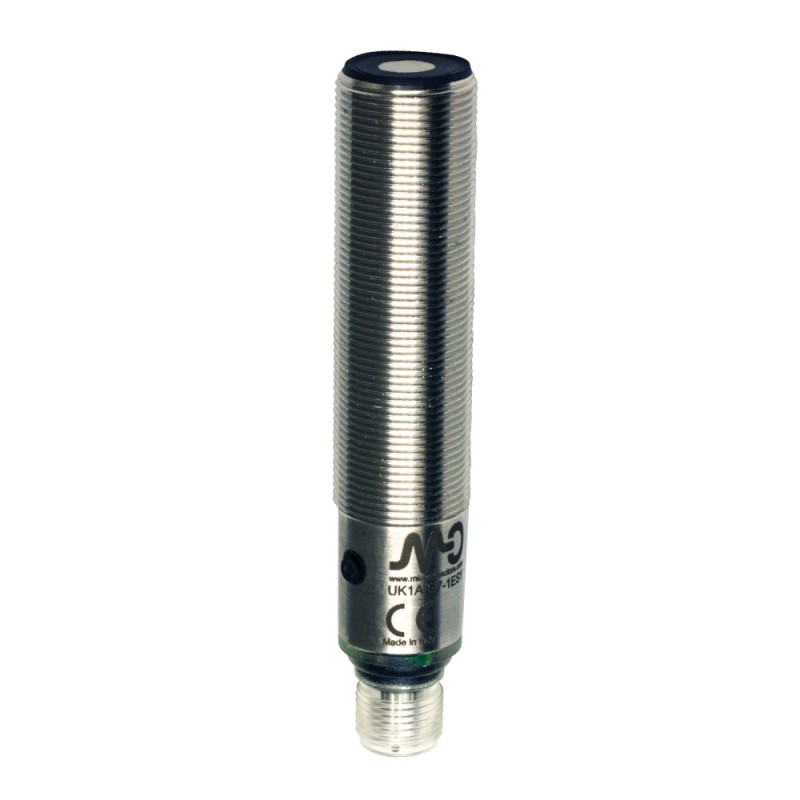

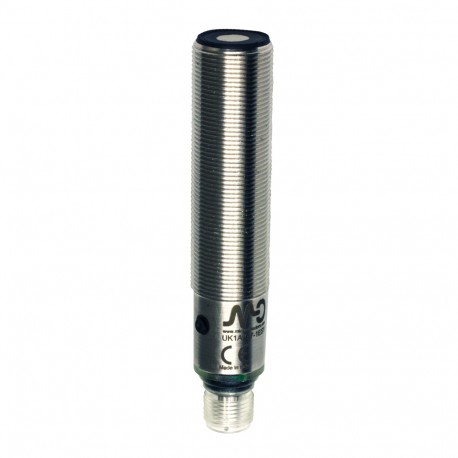

UK1A/G2-1ESY MICRO DETECTORS Ultrasonic sensor M18 analogic 4-20 mA 50-400 mm plug M12 with teach-in button,..
UK1A/G2-1ESY
MICRO DETECTORS
Ultrasonic sensor M18 analogic 4-20 mA 50-400 mm plug M12 with teach-in button,AISI316L stainless steel housing, cULus
UK1A/G2-1ESY Ultrasonic sensor M18 analog. 4-20 mA 50-400 mm conn. M12 with teach-in button,AISI316L stainless steel housing, cULus
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 400mm | |
| Thermal drift of Sr | ±2% | |
| Repeat Accuracy | 0,50% | |
| Beam angle | 10° ± 2° | |
| Resolution | ≤3mm | |
| Sensitivity adjustment | Teach-in button | |
| Hysteresis | 1% | |
| thermal compensation | Yes | |
| Minimum sensing distance (blind zone) | 50mm | |
| Linearity error | 1% | |
Outputs
| Output type | current analogue output 4…20 mA | |
| Switching frequency | 10Hz | |
| Response time | 500ms | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | ≤50mA | |
| Load current | 100mA | |
| Leakage current | 10μA @ 30Vcc | |
| Output voltage drop | 2,2Vmax. @ IL=100 mA | |
| Max ripple content | 5% | |
| LED indicators | green: echo - yellow: output | |
| Time delay before availability | ≤300ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | M18 x 1 / L = 91,6mm | |
| Weight | 100g | |
| Housing Material | stainless steel AISI 316L | |
| Connections | M12 Plug | |
| Tightening torque | 50Nm | |
| Operating temperature | - 20°C…+ 70°C | |
| Storage temperature | - 35°C…+ 80° C without freeze | |
| Transducer Frequency | 300kHz | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | IEC EN60947-5-2 / 7.4 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | 2 nuts M18x1, 2 washers Ø 18 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Disassamento Parallelo
Datasheet - PDF
