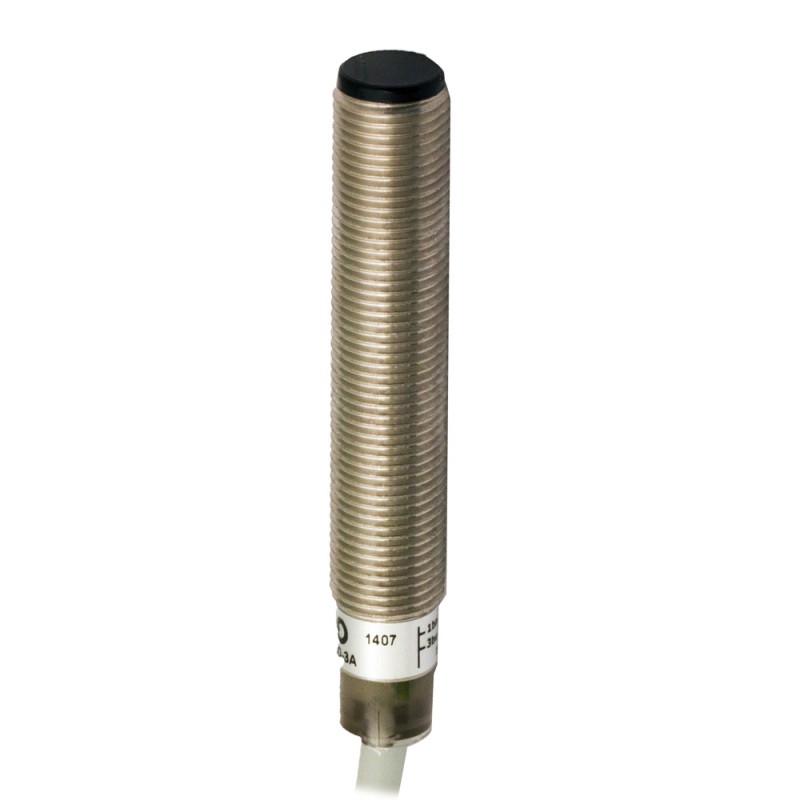

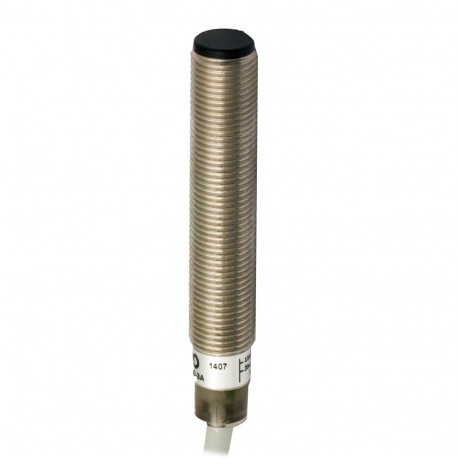

HER/CN-3A MICRO DETECTORS Photoelectric sensor Receiver M8 10-30Vdc NPN NC 10Khz 1m cable 2m axial
HER/CN-3A
MICRO DETECTORS
Photoelectric sensor Receiver M8 10-30Vdc NPN NC 10Khz 1m cable 2m axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 1m (EG=2) | |
| Thermal drift of Sr | ≤10%Sr | |
| Repeat Accuracy | ≤10% | |
| Sensitivity adjustment | No | |
Application
| Function Principle | Through-beam | |
| Emitter/Receiver | Receiver | |
| Optic position | Axial | |
Outputs
| Output type | NPN | |
| Output Function | NC | |
| Switching frequency | 10kHz | |
Electrical data
| Operating Voltage | 10…30Vdc | |
| No-Load supply current | ≤45mA | |
| Load current | ≤100mA | |
| Leakage current | ≤10µA | |
| Output voltage drop | ≤2V | |
| Max ripple content | ≤10% | |
| LED indicators | Yellow (output active) | |
| Time delay before availability | ≤100ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared (880nm) | |
| Interference to external light | 3.000 lux (incandescent lamp), 5.000 lux (sunlight) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | M8x0,75/L=49mm | |
| Weight | 40g | |
| Housing Material | Stainless Steel | |
| Connections | Cable 2m PVC | |
| Active Head Material | PMMA | |
| Operating temperature | - 25°C…+ 50° C (without freeze) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | Metallic nut (2x) | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
