View larger

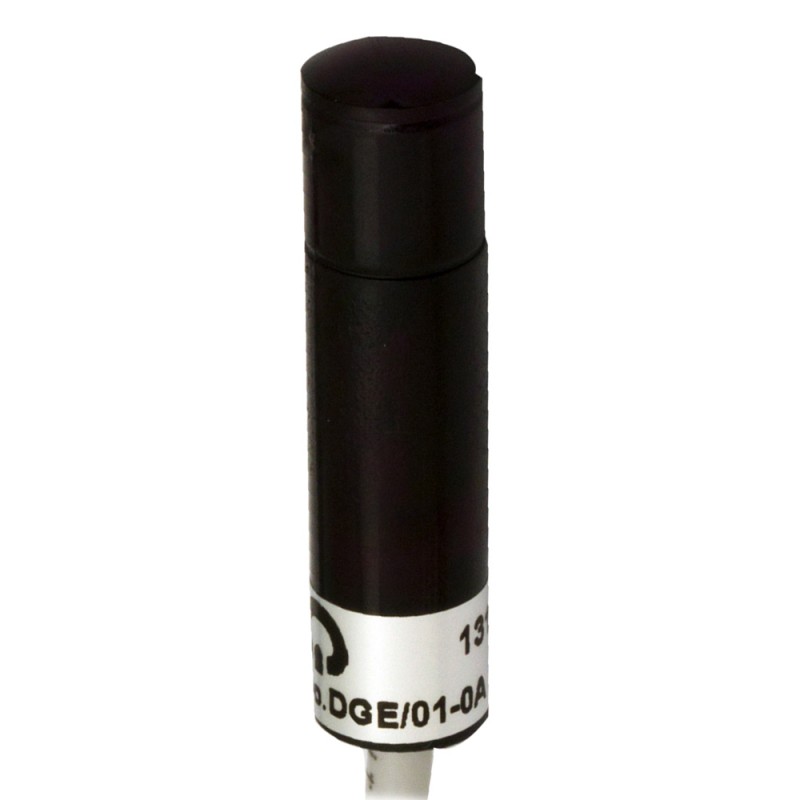

DGE/00-1C MICRO DETECTORS Photoelectric sensor Emitter 60m D.10 mm L46 mm AL Vtr 15 m
DGE/00-1C
MICRO DETECTORS
Photoelectric sensor Emitter 60m D.10 mm L46 mm AL Vtr 15 m
DGE/00-1C Photoelectric sensor Em. 60m D.10 mm L46 mm AL Vtr 15 m
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 60m | |
| Beam angle | ± 5° | |
Application
| Function Principle | Through-beam | |
Electrical data
| Operating Voltage | from UR control unit | |
| Emission | Infrared | |
| Interference to external light | 20000 lux | |
Mechanical data
| Dimensions | Ø 10mm x 46mm | |
| Housing Material | Anozided aluminium | |
| Connections | Cable 15m | |
| Active Head Material | glass | |
| Operating temperature | -20°C … +60°C | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | Conforming with EMC directive according with EN60947-5-2 | |
| Degree of protection | IP67 | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
