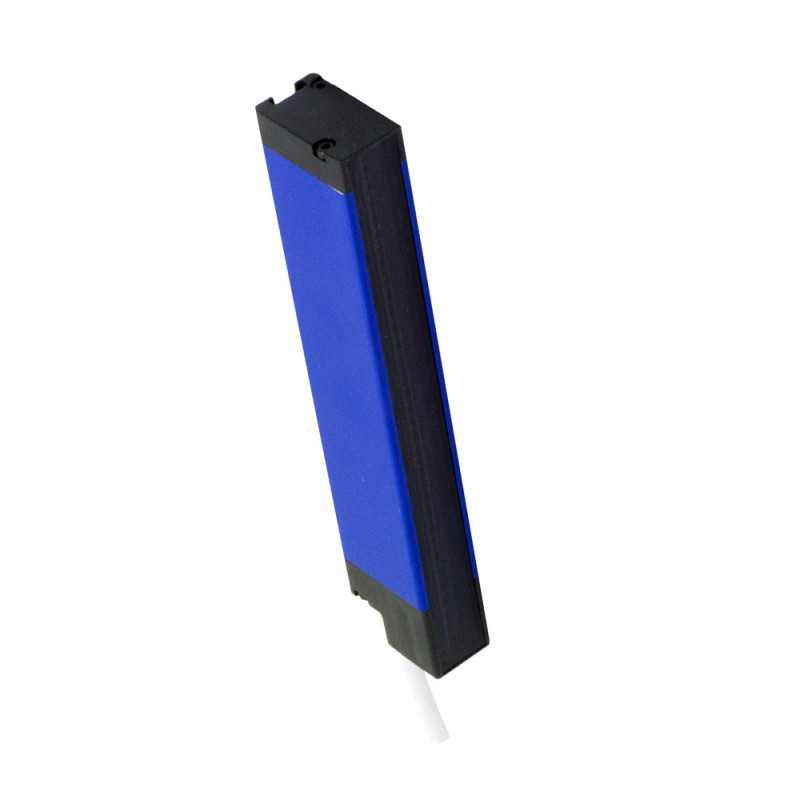

MICRO DETECTORS CX2E0RF/05-032V CX2E0RF/05-032V - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CX2E0RF/05-032V MICRO DETECTORS Area sensor, Synchronization by cable, P: 5mm, H: 320mm, Sensing distance 3m..

Name: CX2E0RF/05-032V MICRO DETECTORS Area sensor, Synchronization by cable, P: 5mm, H: 320mm, Sensing distance 3m..
Brand: MICRO DETECTORS
SKU: MICCX2E0RF05032V
Price: 1070.30 USD
Availability: OutOfStock

Reference: CX2E0RF/05-032V

Manufacturer: MICRO DETECTORS

Description:

Area sensor, Synchronization by cable, P: 5mm, H: 320mm, Sensing distance 3m, Teach G/F, Blanking, parallel beams

CX2E0RF/05-032V Area sensor One cable sync., P: 5mm , H: 320mm, Sn 3m, Teach G/F, Blanking, parallel beams

Categories:

MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

More Info
Reviews

Guarantee, repair and return.

Unit Price: 905,09 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-6 weeks.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distance	0,3 … 3m
Beams space	5mm
controlled height	320mm
minimum detectable object	5mm
number of rays	65
Sensitivity adjustment	Teach-in wire

Application

Function Principle

emitter/receiver

Outputs

Output type	digital output PNP + analog output (0-10V)
Output Function	NO + positive ramp
Switching frequency	[(0,2 x No.beams - 1) + 1] x 2ms

Electrical data

Operating Voltage	16,8…30Vdc
No-Load supply current	≤330ma
Load current	< 100mA
Leakage current	≤ 10µA
Output voltage drop	< 1,5V @ 100mA
Max ripple content	< 1,2Vpp
LED indicators	red and yellow (emitter) - green, red and yellow (receiver)
Time delay before availability	< 3s
Short-circuit protection	Yes
Reverse Polarity Protection	Yes
Emission	infrared
Interference to external light	IEC EN 60947-5-2
Impulsive Overvoltage Protection	Yes

Mechanical data

Dimensions	20mm x 329mm x 35mm
Weight	750g
Housing Material	painted aluminium RAL5002
Connections	1xM12, 4 poli, maschio (CX2E); 1xM12, 8 poli, maschio (CX2R)
Active Head Material	PMMA
Operating temperature	- 10°C…+ 55° C (without freeze)
Storage temperature	- 25°C…+ 60° C (without freeze)

Test/Approvals

Approvals	CEcULus
EMC compatibility	IEC 60947-5-2
Shocks and vibrations	IEC EN 60947-5-2
Degree of protection	IP67

Accessories

Supplied Accessories

ST151 fixing kit

Electrical diagrams of the connections

Connector

Dimension (mm)
