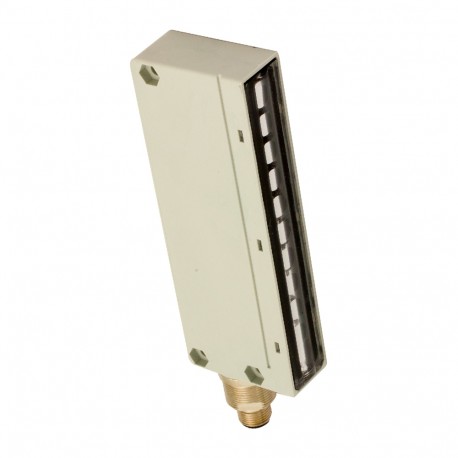

BX10S/00-HB6X MICRO DETECTORS Area sensor Emitter 10 beams, with adjustment, plug M12 10-26VDC Sensing dista..
BX10S/00-HB6X
MICRO DETECTORS
Area sensor Emitter 10 beams, with adjustment, plug M12 10-26VDC Sensing distance = 0-4 m
BX10S/00-HB6X Area sensor Emitt. 10 beams adj. conn. M12 10-26VDC Sn = 0-4 m
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Often bought together
▲Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 0,3 … 4m | |
| Thermal drift of Sr | ≤10% | |
| Beams space | 10mm | |
| controlled height | 90mm | |
| number of rays | 10 | |
| Sensitivity adjustment | Trimmer | |
Application
| Function Principle | Emitter | |
Electrical data
| Operating Voltage | 10-26Vdc | |
| No-Load supply current | 50mA | |
| Load current | ≤100mA | |
| Leakage current | 10μA | |
| Output voltage drop | ≤2V IL =100 mA | |
| Max ripple content | ≤ 10% | |
| LED indicators | Green | |
| Time delay before availability | CE | |
| Short-circuit protection | autoreset | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared | |
| Interference to external light | 1000lux (incandescent lamp), 1500lux (sunlight) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 45mm x 145mm x 20mm | |
| Weight | 230g | |
| Housing Material | PBT | |
| Connections | M12 Plug | |
| Tightening torque | 25Nm | |
| Operating temperature | 0°C…+ 50° C (without freeze) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
