MICRO DETECTORSEncodersVT2/A0-2B MICRO DETECTORS Inductive sensor M30 unshielded NO cable 2m
MICRO DETECTORS VT2/A0-2B VT2/A0-2B - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

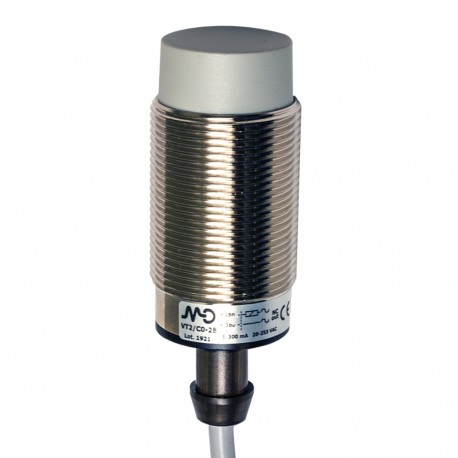

VT2/A0-2B MICRO DETECTORS Inductive sensor M30 unshielded NO cable 2m

Reference: VT2/A0-2B

Manufacturer: MICRO DETECTORS

Description:

Inductive sensor M30 unshielded NO cable 2m
VT2/A0-2B Inductive sensor M30 unshielded NO cable 2m

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 67,79 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance15mm
Operanting distance0…12,1mm
Standard target45x45mm FE360
Correction Factorcopper: 0,45/ aluminium: 0,50 / brass: 0,60 / stainless steel: 0,80
Thermal drift of Sr< 10%
Repeat Accuracy5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 … 20%

Outputs

Output typeTRIAC
Output FunctionNO
Switching frequency25Hz

Electrical data

Operating Voltage20 - 253Vac - 50/60Hz
Load current7A (Ton = 10ms)
Leakage current≤ 1mA RMS max
Output voltage dropVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Max ripple content≤10%
LED indicatorsYellow LED output state
Time delay before availability200ms
Inrush current7A (Ton = 10ms)

Mechanical data

DimensionsM30 x 1,5 / L = 80mm
MountingUnshielded
Weight100g
Housing MaterialNickel-plated brass
Connections50Nm
Active Head MaterialPBT
Tightening torque5...300mA
Operating temperature-25°C…+70°C

Test/Approvals

ApprovalsCEUR
EMC compatibility2m PVC Cable with tang
Shocks and vibrationsIEC 60947-5-2
Degree of protectionIP 67 (EN60529)

Accessories

Supplied Accessories2 nuts M30x1,5

Electrical diagrams of the connections


Dimension (mm)



Installation



Response curves

Disassamento Parallelo


DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
