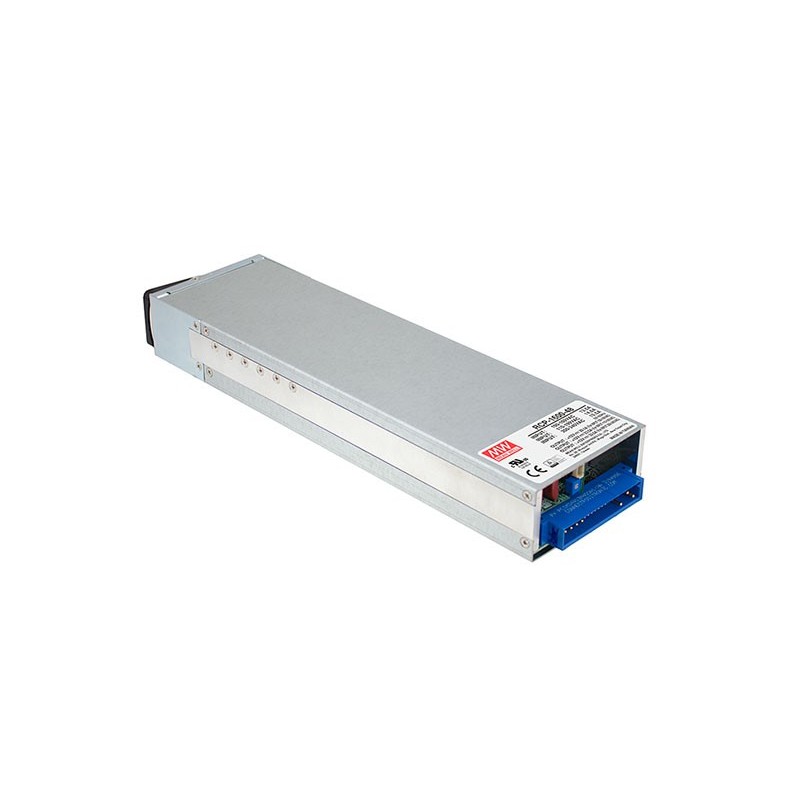

RCP-1600-48 MEANWELL AC-DC 19 inch rack power supply with PFC, Output 48VDC / 33.5A, 1U profile, Current sha..

Power supply for 19" Rack programmable via I^TwoC and PMBus.

FormatRack 19".

Range of universal input90-264vac.47-63Hz.

Output voltage48vdc.Adjustable by potentiometer (47,5-58,8 Vdc) or by external resistance from 40% to 125%

or configurable by protocol I^TwoC.

Output intensity33,5. Range of output current 0-33,5 according To the demand load.

Power:1608W.

Efficiency typical:93%.

Paralelizable up to 3 units with sharing of active current and diode mosfet protection in the Rack RHP-1U.

Hot Swapt. Change in hot.

Factor corrector, power>0,97to 230vac at full load.

Remote on / off.

Auxiliary output and 5V 0.3 A.

3-color LED charging status indicator.

Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:300 x 85 x 41.

5 years of warranty.

Manufacturer: MEAN WELL.

The power supplies of the series PCR are designed to install in the Rack RHP-1U supports up to 3 sources RCP-1600. These sources allow you to configure the output current through R^TwoC and PMBus, and optionally via CANBus. Can be connected in parallel up to 3 sources protected by a diode Mosfet for the protection of the current investment. They have a wide range of temperature from -30ºC up to +70ºC. The tension can also be adjusted via a potentiometer. Have a high efficiency and auxiliary output of 5V. The function Hot-Swap or hot-swap allows us to replace any damaged equipment without having to stop the system, or to increase the power at any time.
